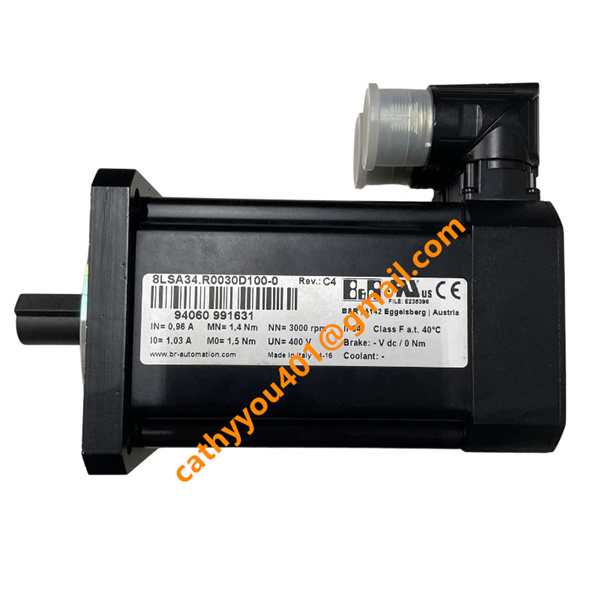

8LSA34.R0030D100-0 Servo Motor NEW IN STOCK

• Brand
  B&R
• Model
  8LSA34.R0030D100-0
• Product Name
  8LS Series Three-phase Permanent Magnet Synchronous Servo Motor
• Country of Origin
  Austria
• HS Code
  85015119
• Dimensions
  130mm×130mm
• Weight
  3.8kg
• Operating Temperature
  -20°C ~ +40°C
• Storage Temperature
  -30°C ~ +85°C
• Power Supply
  24vdc
• Warranty
  12 month
• Product Status
  New and original

B&R 8LSA34.R0030D100-0 Three-phase Synchronous Servo Motor

Electrical Specifications

Voltage & Current:Rated Input Voltage: 400V Three-phase AC

Rated Power: 750W

Rated Speed: 3000 rpm

Maximum Allowable Speed: 9000 rpm

Rated Torque: 2.39 N·m

Stall Torque: 2.7 N·m

Peak Overload Torque: 4.8 N·m

Rated Current: 3.9A

Peak Maximum Current: 7.8A

Torque Constant Kt: 1.45 N·m/A

Voltage Constant Ke: 87.96 V/1000rpm

Stator Two-phase Resistance: 22.83 Ω

Two-phase Inductance: 102.3 mH

Cooling Mode: Natural Convection Self-cooling

Rotational Inertia: 0.65 kg·cm²

Thermal Time Constant: 32 minutes

Encoder Type: Resolver rotary position sensor (R0 code in model number)

Shaft Structure: Smooth solid shaft; D100 = side outlet rotatable connector structure

B&R 8LSA34.R0030D100-0 Wiring Method Instruction

This motor adopts single hybrid cable integrated wiring scheme (power line + encoder signal line integrated in one cable):

1. Power Circuit Wiring (Three-phase Main Circuit):

U, V, W three-phase power lines connect to corresponding UVW terminal of B&R ACOPOS servo driver; PE protective earth wire must be reliably connected to equipment grounding busbar to meet EMC safety requirements.

2. Resolver Encoder Signal Wiring:

Matched dedicated resolver feedback cable connects motor encoder connector to drive encoder feedback interface, wiring definition follows B&R official 8LS manual pin assignment:Excitation winding: R1, R2; Sensing winding: S1-S2, S3-S4

Built-in motor temperature detection signal is transmitted via hybrid cable to servo driver for overheat protection trigger

3. Connector Operation: Industrial self-locking quick-release aviation plug, rotate connector housing for 300° to adjust cable outlet direction; fast locking design reduces wiring construction time

4. Optional Holding Brake Wiring: If equipped with permanent magnet holding brake, connect 24VDC control power separately; power-on releases brake, power-off locks motor shaft strictly for vertical axis anti-falling application.

B&R 8LSA34.R0030D100-0 Core Product Advantages

1. Excellent dynamic performance: Ultra-high overload capacity up to 300%, extremely short electrical time constant only 4.5ms, rapid acceleration & deceleration for high-speed reciprocating equipment

2. Resolver feedback features strong anti-interference ability, stable signal transmission under strong electromagnetic interference environment, higher durability than optical encoders

3. Compact slim body design, high power density, saves installation space for integrated mechanical equipment

4. Full EMC industrial electromagnetic compatibility certification, low electromagnetic radiation, no interference to peripheral control equipment

5. Perfect compatibility with B&R ACOPOS multi-axis servo drives, supports openSAFETY safety bus, realizes safe motion control conforming to ISO 13849 standard

6. High-strength metal casing + 300° freely swivel hybrid connectors, flexible wiring direction, easy on-site installation and maintenance

7. Low torque ripple, stable low-speed operation, guarantees micron-level repetitive positioning precision

•
  B&R 8LSA34.R0030D100-0 datasheet PDF
