Description
-
BrandABB
-
ModelUnitrol 1020
-

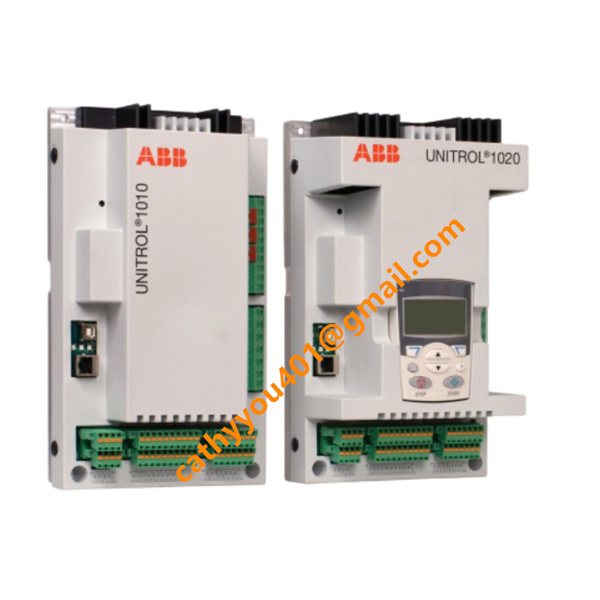

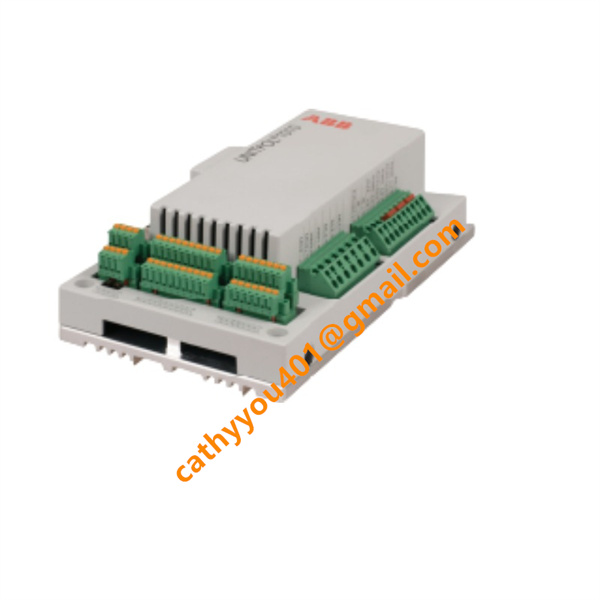

Product NameUNITROL 1020 Digital Automatic Voltage Regulator
-
Place of OriginSwitzerland
-
HS Code85389000
-
Dimensions200 mm × 150 mm × 60 mm
-
Weight3.5 kg
-
Operating Temperature-20 °C to +55 °C
-
Storage Temperature-40 °C to +85 °C
-
Part Number3BHE036163R6106
-
Warranty12 month
-
Product StatusNew and original
Backed by abundant in-stock inventory and nearly 20 years of industry experience, our company stands as a leading player in the industrial control sector.We offer an extensive range of industrial control products covering numerous models. Should you have any other requirements, please feel free to contact us, and we will respond to you promptly.
Our main brand:
1.ABB's module cards, touch screens, controllers, etc., such as PP846 touch screen, IGCT starting with 5SHY, PM starting controller, AI, DO starting input/output module, SP starting Bailey module, etc
2.GE's module card CPUs, such as VMIC starter, IS200, IS215, IS400, IS420 series, etc,
3.Emerson's card components and EPRO probes, Westinghouse 1C series, Honeywell CC series, Schneider 140 series, Envision full series, Bentley 3500 series, Rexroth motors and drives, and Foxboro small modules.
Main Features
Compact and durable automatic voltage regulator (AVR) supporting excitation current up to 20 A
Independent dedicated processors for communication and control tasks
Comprehensive suite of embedded control software functions
Ethernet-based fieldbus communication interface
Wide-range power input, compatible with both AC and DC power supply
Freely configurable measurement channels and digital/analog input & output terminals
Key Benefits
Consistent and dependable machine control
Highly integrated, rugged AVR engineered for demanding industrial environments. Delivers steady, precise regulation even under severe voltage distortion.
Multi-scenario adaptability
Customizable I/O modules, measurement inputs and configurable fieldbus interfaces simplify seamless integration into diverse power plant systems.
Simplified operation, monitoring and maintenance
Equipped with intuitive, user-friendly commissioning software tools.
Full compliance with grid standards
Certified in accordance with German grid codes, supplied with validated simulation models to support dynamic grid fault analysis including fault ride-through (FRT).
Optional built-in Power System Stabilizer (PSS); relevant simulation models and grid compliance assessment documents are available.
Cost-effective asset lifecycle management
Extends equipment service life while minimizing overall operational expenditure.
Global professional technical support
Backed by ABB’s worldwide excitation system service network.
Special Notes
1) A 3-phase power supply and an external 1 mF capacitor are mandatory for the UNITROL 1020 to operate within the nominal excitation current range of 15 A to 20 A.
2) For UNITROL 1010 and UNITROL 1020 models, if the machine voltage measurement exceeds 250 VAC, the machine star point must be connected to protective earth (PE).
Power Electronic Input (AC/DC)
AC Nominal Input Voltage
- UNITROL 1005: 16 ~ 250 VAC
- UNITROL 1010 / 1020: 0 ~ 250 VAC
Frequency Range: 25 ~ 600 Hz (All models)
DC Nominal Input Voltage
- UNITROL 1005: 18 ~ 300 VDC
- UNITROL 1010 / 1020: 0 ~ 300 VDC
Maximum Peak Input Voltage (Non-sinusoidal): 420 VP (All models)
Minimum Startup Voltage
- UNITROL 1005: 6 VAC / 10 VDC
- UNITROL 1010 / 1020: Not applicable
Controller Auxiliary Supply Input
3-Phase AC Nominal Input Voltage
- UNITROL 1005: Not supported
- UNITROL 1010 / 1020: 9 ~ 250 VAC
1-Phase AC Nominal Input Voltage
- UNITROL 1005: Not supported
- UNITROL 1010 / 1020: 16 ~ 250 VAC
Frequency Range
- UNITROL 1005: Not supported
- UNITROL 1010 / 1020: 40 ~ 600 Hz
DC Nominal Input Voltage
- UNITROL 1005: Not supported
- UNITROL 1010 / 1020: 18 ~ 300 VDC
Maximum Peak Input Voltage (Non-sinusoidal)
- UNITROL 1005: Not supported
- UNITROL 1010 / 1020: 420 VP
Excitation Output
Continuous Output Current @ 55°C
- UNITROL 1005: 8 ADC
- UNITROL 1010: 10 ADC
- UNITROL 1020: 15 ADC (20 ADC with dedicated configuration)
10-Second Overload Current @ 55°C
- UNITROL 1005: 16 ADC
- UNITROL 1010: 25 ADC
- UNITROL 1020: 38 ADC
Exciter Current Measurement
Full Measurement Range
- UNITROL 1005: 0 ~ 25 A
- UNITROL 1010 / 1020: 0 ~ 38 A
Accuracy / Resolution
- UNITROL 1005: < 1% / < 20 mA
- UNITROL 1010 / 1020: < 1% / < 100 mA
Machine & Grid Measurement Parameters
Machine Voltage (1/2/3-Phase): Up to 500 VAC (All models, comply with PE grounding requirement above 250 VAC)
1-Phase Machine Current: 1 ~ 5 AAC (All models)
1-Phase Grid Voltage: Up to 500 VAC (All models)
Frequency Measurement Range: 10 ~ 150 Hz (All models)
Measurement Accuracy (-40°C ~ 70°C / @ 25°C): ±1% / 0.1% (All models)
Voltage Regulation Performance
AVR Response Time
- 3-phase measurement: < 20 ms
- 1-phase measurement: < 50 ms (All models)
PWM Adjustment Range: 0.5% ~ 99% (All models)
Digital Inputs & Outputs
IO Configuration (Input-only / Input&Output / Output-only)
- UNITROL 1005: 8 / 0 / 4
- UNITROL 1010 / 1020: 4 / 8 / 0
Digital IO Operating Voltage: 24 V (All models)
Analog Inputs & Outputs
Quantity (Input / Output)
- UNITROL 1005: 2 / 0
- UNITROL 1010 / 1020: 3 / 2
Analog IO Signal Range
- UNITROL 1005: ±10 V / 0 ~ 20 mA
- UNITROL 1010 / 1020: ±10 V
Communication Interfaces
Ethernet Port: 10/100 MBit/s, maximum cable length: 100 m (All models)
USB Interface: Compatible with USB 1.0 / 1.1 / 2.0, maximum cable length: 3 m (All models)
CAN Bus
- UNITROL 1005: Not supported
- UNITROL 1010 / 1020: Only for internal communication between UNITROL 1000 series devices
