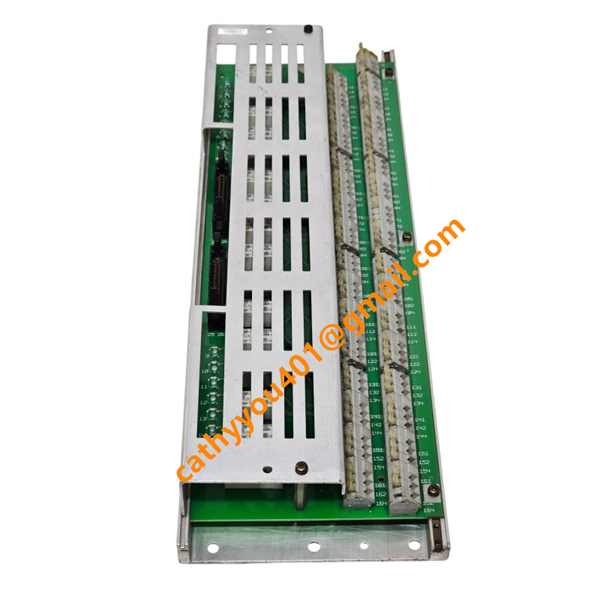

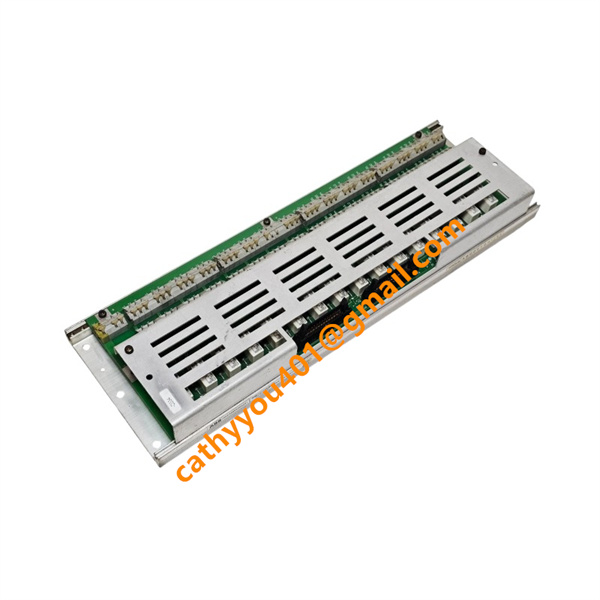

GDB021BE HIEE410455P104 ABB DCS Gate Drive Board

• Brand
  ABB
• Model
  GDB021BE
• Product Name
  Gate Drive Board for UNITROL Static Excitation System
• Place of Origin
  Switzerland
• HS Code
  85389000
• Dimensions
  162 mm × 225 mm × 48 mm
• Weight
  0.82 kg
• Operating Temperature
  -10 °C to +60 °C
• Storage Temperature
  -40 °C to +85 °C
• Part Number
  HIEE410455P104
• Warranty
  12 month
• Product Status
  New and original

Backed by abundant in-stock inventory and nearly 20 years of industry experience, our company stands as a leading player in the industrial control sector.We offer an extensive range of industrial control products covering numerous models. Should you have any other requirements, please feel free to contact us, and we will respond to you promptly.

Our main brand:

1.ABB's module cards, touch screens, controllers, etc., such as PP846 touch screen, IGCT starting with 5SHY, PM starting controller, AI, DO starting input/output module, SP starting Bailey module, etc

2.GE's module card CPUs, such as VMIC starter, IS200, IS215, IS400, IS420 series, etc,

3.Emerson's card components and EPRO probes, Westinghouse 1C series, Honeywell CC series, Schneider 140 series, Envision full series, Bentley 3500 series, Rexroth motors and drives, and Foxboro small modules.

Inputs

24VDC working power supply;

Trigger phase control command from AVR main control board;

Synchronous voltage sampling signal (grid synchronization reference);

Power loop status feedback signal;

External enable/block signal.

Outputs

Six isolated thyristor trigger pulses (sent to the thyristor gate of the rectifier bridge);

Feedback signals such as pulse faults and power supply abnormalities are sent back to the main control unit;

Onboard fault indication drive signal.

The GDB021BE HIEE410455P104 serves as a plug-in gate drive circuit board specially designed for ABB UNITROL static excitation systems. During normal operation, the module receives multiple input signals including firing angle commands, AC synchronization reference waveforms, as well as enable and inhibit control signals delivered from the main AVR controller. These acquired signals undergo internal signal conditioning and timing processing to produce precisely synchronized firing pulses. Leveraging built-in reinforced galvanic isolation circuits, the board converts low-voltage control-level signals into stable, electrically isolated drive pulses, which are then routed to trigger the thyristors installed in the excitation power rectifier bridge. By dynamically adjusting the firing instant of each thyristor, the board modulates the magnitude of rectified DC excitation current, so as to stabilize the terminal voltage of synchronous generators. In addition, the board implements real-time surveillance on pulse integrity and internal circuit operating status. If irregular pulse outputs or hardware circuit failures are identified, relevant fault feedback signals will be transmitted back to the master excitation controller to activate corresponding system protection logic. Benefiting from optimized anti-interference PCB layout and hardware design, the unit sustains consistent and dependable signal performance even in the harsh electromagnetic environment inside excitation cabinets.
