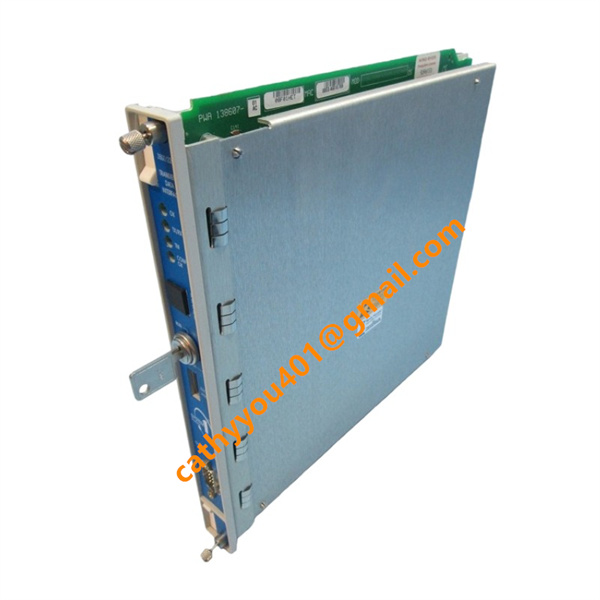

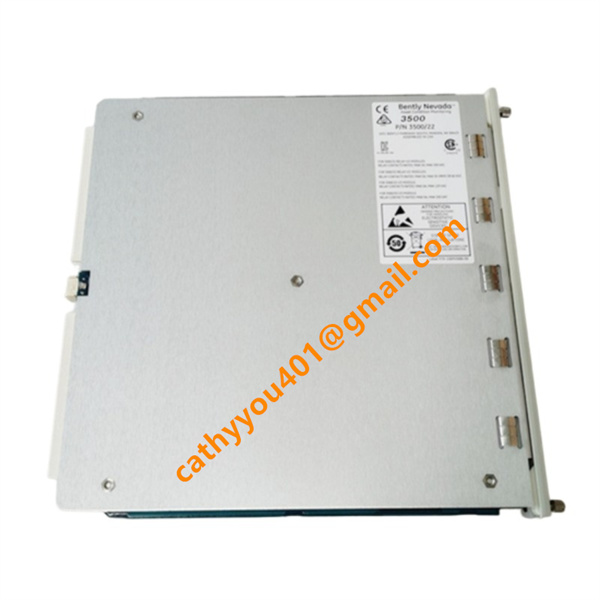

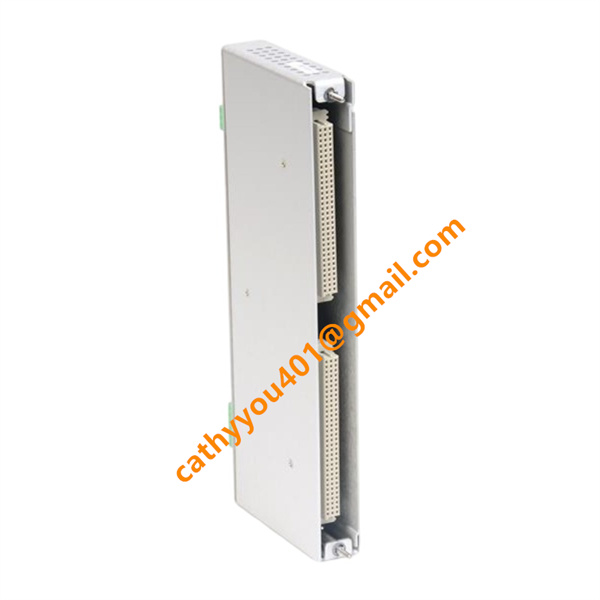

3500/22-01-01-01 138607-01+146031-01 Bently dcs Module

• Brand
  Bently
• Model
  3500/22-01-01-01
• Product Name
  3500/22M Transient Data Interface (TDI) Module
• Country of Origin
  United States
• HS Code
  8538909190
• Dimensions
  241.3mm (H)×24.4mm (W)×241.8mm (D)
• Weight
  0.91kg ,2.0 lbs
• Operating Temperature
  0℃ ~ +60℃
• Storage Temperature
  -40℃ ~ +85℃
• Part Number
  138607-01+146031-01
• Warranty
  12 MONTH
• Product Status
  NEW AND ORIGINAL

Bently Nevada 3500/22-01-01-01 (138607-01+146031-01 ) Technical Specification

Power Supply Specification

Rated Input Voltage: +24VDC backplane bus power supply (allowable range: 20VDC ~ 30VDC)

Operating Current: Typical working current 320mA; Max peak current ≤ 450mA

Total Power Consumption: ≤ 10.8W

Communication & Sampling Performance

1. High-speed transient waveform sampling rate: Up to 200kHz high-resolution sampling

2. Built-in large-capacity buffer memory for transient fault waveform cache

3. Communication Ports: 100BASE-TX Electrical Ethernet, MT-RJ 100BASE-FX Fiber Optic Interface, RS232 local debugging port

4. Supported Protocols: TCP/IP, Modbus TCP, Bently Nevada proprietary TDXnet protocol

3500/22-01-01-01 138607-01+146031-01  Bently Core Product Advantages

1. Dual functions of rack interface gateway + high-speed transient data recorder, two-in-one design, saving cabinet slot space

2. Hot-plugging support, module replacement without shutting down the whole monitoring rack, no interruption to machine protection logic

3. Ultra-strong anti-EMI capability, perfect adaptability to heavy industrial field strong electromagnetic interference environment

4. Mass transient waveform storage capacity, can record complete vibration mutation data during rotor surge, rubbing, unbalance failure for fault tracing

5. Seamless docking with Baker Hughes System 1 diagnostic platform, supporting spectrum analysis, orbit plotting, machine fault root cause analysis

6. Standard Modbus TCP protocol access, easy data upload to DCS, PLC and upper industrial control system

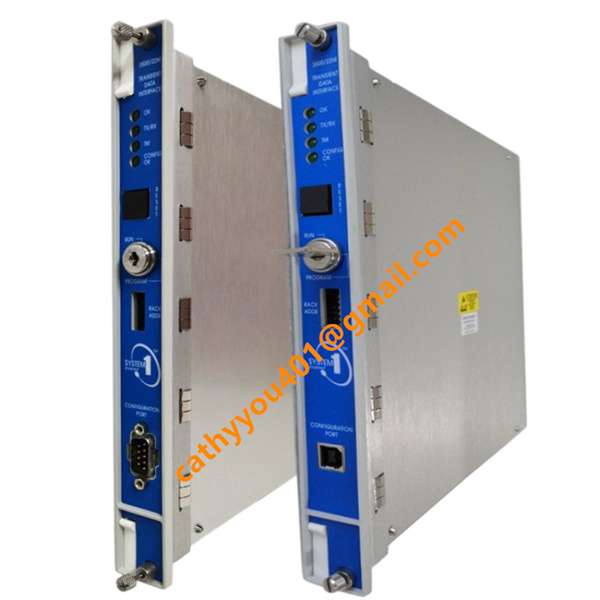

7. Multi-indicator front panel LED status lights: OK, TX/RX, Configuration, Fault alarm for quick on-site troubleshooting

8. Certified with CE, UL, CSA, ATEX industrial safety certifications, meets international petrochemical & power industry safety standards

3500/22-01-01-01 138607-01+146031-01  Bently Detailed Wiring & Connection Instructions

1. Backplane Bus Internal Wiring

The module inserts into 3500 rack rear backplane slot, realizing automatic power supply, rack data bus communication via gold finger contact; no extra wiring required for backplane connection.

2. Front Panel Communication Interface Wiring

a. RJ45 Electrical Ethernet Port: Cat5e/6 shielded network cable connection, for wired TCP/IP communication to upper computer, DCS system; shield layer single-end grounding

b. MT-RJ Fiber Optic Port: Multimode fiber optic cable with MT-RJ male connector, long-distance anti-interference data transmission for workshop field layout

c. 9-Pin RS232 Debug Serial Port: Connect laptop for local module parameter configuration, firmware upgrade and fault diagnosis

3. Auxiliary I/O Daughter Card 146031-01 Terminal Wiring

a. Digital Input Terminals: External fault reset signal, system enable, emergency interlock signal access

b. Digital Output Terminals: Module running ready signal, communication failure alarm relay contact output

c. Analog Auxiliary Terminals: Reserved signal expansion interface for auxiliary monitoring signal transfer

•
