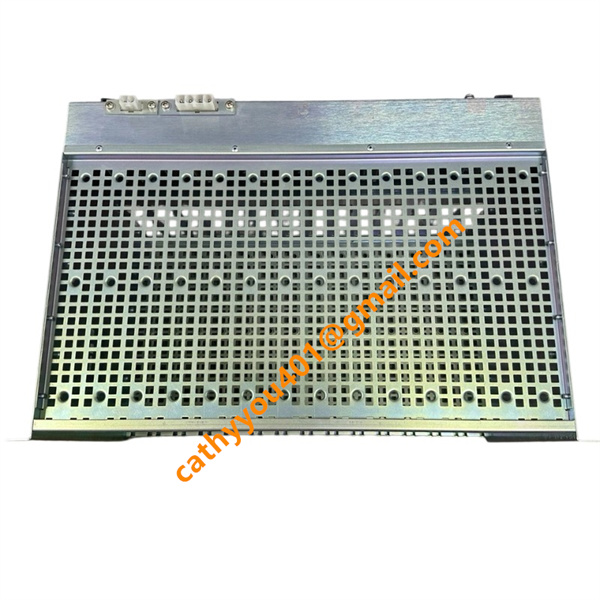

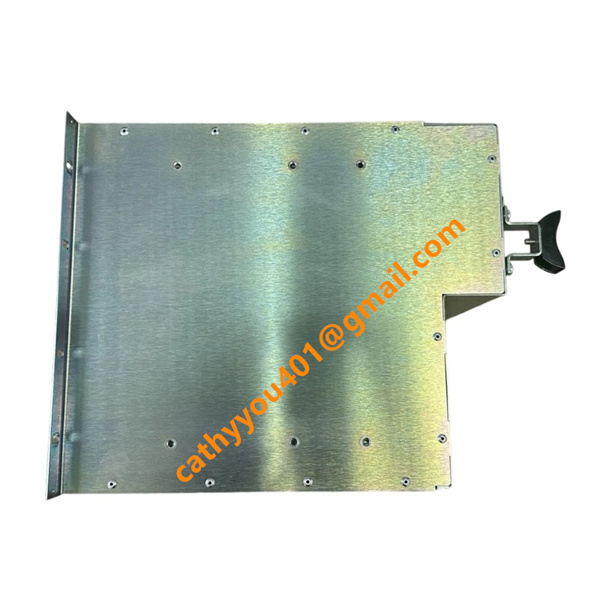

T8300 ICS Triplex DCS Trusted TMR Expander Processor

• Brand
  ICS Triplex
• Model
  T8300
• Product Name
  Trusted TMR Expander Processor
• Place of Origin
  United States
• HS Code
  8537101190
• Dimensions
  340 mm × 265 mm × 40 mm
• Weight
  1.28 kg
• Operating Temperature
  0 °C ~ +60 °C
• Storage Temperature
  -40 °C ~ +70 °C
• Power Supply
  24 V DC
• Warranty
  12 month
• Product Status
  New and original

Backed by abundant in-stock inventory and nearly 20 years of industry experience, our company stands as a leading player in the industrial control sector.We offer an extensive range of industrial control products covering numerous models. Should you have any other requirements, please feel free to contact us, and we will respond to you promptly.

Our main brand:

1.ABB's module cards, touch screens, controllers, etc., such as PP846 touch screen, IGCT starting with 5SHY, PM starting controller, AI, DO starting input/output module, SP starting Bailey module, etc

2.GE's module card CPUs, such as VMIC starter, IS200, IS215, IS400, IS420 series, etc,

3.Emerson's card components and EPRO probes, Westinghouse 1C series, Honeywell CC series, Schneider 140 series, Envision full series, Bentley 3500 series, Rexroth motors and drives, and Foxboro small modules.

Input Signals

Power Input: Receives 24 V DC operating power steadily through the system chassis backplane, serving as the core power supply for module operation and internal circuit drive.

Backplane Bus Input: Adopts high-speed differential bus interface to receive real-time control commands, clock synchronization signals and system configuration data transmitted from the main processor unit.

Status Monitoring Input: Built-in internal signal acquisition function to continuously collect module operating status, bus communication quality and hardware health data for real-time system self-diagnosis.

Output Signals

Backplane Bus Output: Uploads field I/O operating data, module diagnostic results and status feedback information to the main controller via the chassis backplane bus to realize system data interaction and closed-loop control.

Status Indication Output: Drives front-panel LED indicators to visually display real-time working status, communication activity and fault alarm conditions of the module.

Note: This expander processor module is designed for system internal bus data interaction. It is not equipped with external analog and discrete field wiring terminals, and does not support direct field signal connection.

Oil and Gas Industry

It is extensively utilized in offshore drilling platforms, onshore oil and gas fields, petroleum refineries, and long-distance transmission pipeline facilities. The module supports core safety systems including Emergency Shutdown (ESD) and Fire & Gas (F&G) interlock protection. It expands the system’s field signal collection range and ensures fast, accurate and stable safety response in complex and hazardous operating environments.

Petrochemical and Chemical Industry

It serves critical safety control scenarios in chemical production, covering reactor safety protection, distillation process interlock control, storage tank overpressure prevention and full-process chemical safety monitoring. While expanding the system’s I/O processing capacity, the module retains complete TMR fault-tolerant performance, effectively eliminating safety risks and guaranteeing the stable and continuous operation of chemical production lines.

Power Generation Industry

The module is applicable to safety protection systems of thermal power plants, including boiler safety supervision, turbine safety interlock and auxiliary equipment safety monitoring. It realizes centralized and distributed processing of various safety signals, effectively preventing unit shutdown accidents caused by single-point hardware failures, and improving the overall operational stability of power generation equipment.

General Process Industry

It is widely applied in metallurgical production, large compressor stations, industrial water treatment, machinery manufacturing and other process industries. By expanding safety control racks and managing distributed on-site I/O signals, the module provides reliable safety interlock and emergency shutdown protection for core production equipment, avoiding equipment failure and safety accidents.

System Architecture Application

As a key core expansion component of the SIS system, the T8300 acts as a bridge connecting the main control rack and remote expansion chassis. It undertakes high-speed bus data communication, real-time I/O data transmission and continuous system self-diagnosis tasks. It is the preferred module for large-scale, multi-cabinet and long-distance distributed SIS projects, meeting the requirements of extended control scale and high-level safety integrity.
