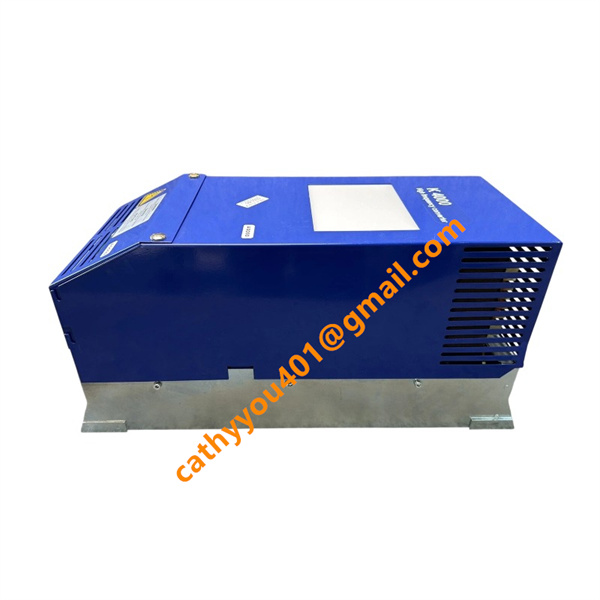

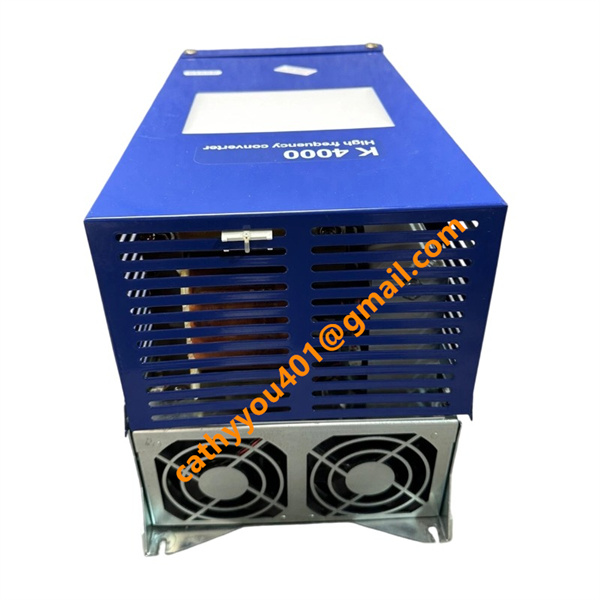

KT4030-01 Danaher DCS Servo Drive Inverter

• Brand
  Danaher
• Model
  KT4030-01
• Product Name
  15KW High-Frequency Servo Drive Inverter
• Place of Origin
  United States
• HS Code
  85044090
• Dimensions
  320mm (W) × 410mm (H) × 145mm (D)
• Weight
  6.8 kg
• Operating Temperature
  0°C ~ +45°C
• Storage Temperature
  -20°C ~ +70°C
• Power Supply
  24vdc
• Warranty
  12 month
• Product Status
  New and original

Danaher KT4030-01 Introduction and Technical Specifications

Electrical Parameters

Input Voltage: 3-phase 200VAC ~ 480VAC industrial wide-range voltage

Rated Output Current: 30A RMS continuous current

Peak Output Current: 45A RMS instantaneous peak current

Overload Capacity: 120% continuous overload operation support

Built-in Braking Unit: Equipped with 15Ω 1200W dynamic braking resistor

Adopts IGBT power module, supporting high-frequency stable operation and fast dynamic response

Integrated overvoltage, undervoltage, overcurrent, overheating and short-circuit protection functions

KT4030-01 Danaher Product Advantages

1. Wide-range three-phase voltage input design, adaptable to various industrial power supply environments with strong compatibility.

2. Excellent overload and peak current performance, capable of coping with equipment startup impact and heavy-load sudden load changes.

3. Integrated high-power braking resistor, realizing fast braking and accurate position stop for high-speed motion equipment.

4. High-frequency drive technology supports high-speed motor operation, meeting precision and high-efficiency motion control demands.

5. Multiple comprehensive protection mechanisms effectively avoid equipment damage caused by abnormal working conditions, improving operational stability.

6. Compact integrated structure integrates driving, braking and protection functions, saving cabinet installation space.

7. Reliable industrial design, long service life and low failure rate, reducing long-term equipment operation and maintenance costs.

KT4030-01 Danaher  Application Scenarios

Mainly applicable to high-precision automation equipment, industrial high-speed servo motor control, mechanical transmission systems, automated production lines and heavy-duty industrial motion control scenarios. It is widely used in machinery manufacturing, automated processing, industrial automation and other industrial fields requiring high-speed and high-precision drive control.

KT4030-01 Danaher Wiring & Installation Method

Power Wiring: Adopts X1 high-power terminal block for three-phase power input and motor output wiring, supporting standard industrial power cables

Control Wiring: Equipped with independent X2 control terminal block and CN3 communication interface, for signal connection, parameter debugging and upper computer communication

Ground Wiring: Standard grounding terminal configuration to ensure equipment anti-interference and operational safety

Installation Method: Standard vertical cabinet wall-mounted installation, reserved fixing holes for stable assembly in industrial control cabinets

•
  KT4030-01 Danaher TATASHEET PDF
  Download
