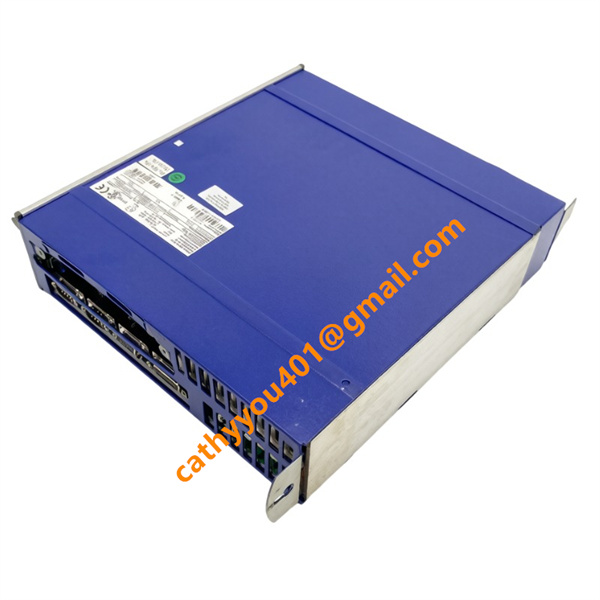

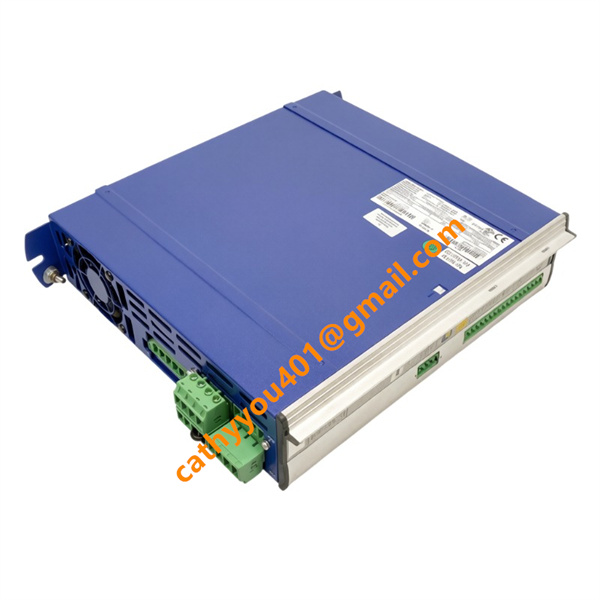

S60600-550 Kollmorgen DCS servo drive

• Brand
  Kollmorgen
• Model
  S60600-550
• Product Name
  SERVOSTAR 606 S600 Series Digital Single Axis Servo Amplifier / Servo Drive
• Country of Origin
  Germany
• HS Code
  8504409570
• Dimensions
  279mm (H)×76mm (W)×203mm (D)
• Weight
  4.2kg (9lbs 4oz)
• Operating Temperature
  0°C ~ +45°C
• Storage Temperature
  -20°C ~ +70°C
• Power Supply
  24vdc
• Warranty
  12 month
• Product Status
  New and original

Kollmorgen S60600-550 SERVOSTAR 606 Servo Drive Technical Specification

Input Voltage

3-phase AC Industrial Main Power: 208VAC ~ 480VAC (Tolerance ±10%)

Auxiliary Control Power Supply: 24VDC Isolated Power Supply, Voltage Range 20.4VDC ~ 27.6VDC

Current Rating

Continuous Output RMS Current per Phase: 6A

Peak Overload Current (0.5s instantaneous overload): 12A (2 times rated current)

Rated Input Apparent Power: 4.0KVA

Maximum Continuous Output Power: 1.5kW

Switching & Control Performance

PWM Carrier Frequency: 16kHz

Current Loop Response Speed: 125μs / 8kHz update frequency

Velocity Loop Update Cycle: 500μs / 2kHz

Velocity Control Precision: Long-term speed fluctuation ≤ 0.01%

Speed Adjustment Range: 16000:1 ultra-wide speed regulation ratio

Supported Feedback: Resolver, Sine/Cosine Encoder, SSI Absolute Encoder, Incremental Encoder

S60600-550  Kollmorgen Core Product Advantages

1. Ultra-high dynamic response, rapid acceleration & deceleration, low motion overshoot, excellent positioning accuracy for high-speed precision processing equipment

2. Built-in complete protection system: overcurrent, overvoltage, undervoltage, overtemperature, motor overload, feedback signal loss, phase short-circuit, overspeed automatic protection & fault alarm function

3. Integrated EMC mains filter, effectively suppress industrial electromagnetic interference, stable operation in workshop strong interference environment

4. Flexible multi-control modes: analog ±10V speed/position command, pulse & direction instruction, serial communication control, freely switchable

5. Support optional extended bus modules: DeviceNet, Profibus, SERCOS, EtherCAT, SynqNet to match various PLC host control systems

6. Professional MOTIONLINK upper computer debugging software, one-click automatic motor parameter identification, convenient gain tuning, fault diagnosis and parameter backup

7. Compact cabinet layout size, save electrical cabinet installation space, easy wiring and later maintenance

8. Certified with CE, UL, cUR international safety industrial certifications, compliant with European and American industrial electrical safety standards

S60600-550  Kollmorgen Standard Wiring Instruction

1. Main Power Wiring Terminal (High Power Terminal Block X3/X4)

a. L1, L2, L3: 3-phase AC main power input terminals

b. U, V, W: Servo motor three-phase power winding output terminals

c. PE Terminal: Protective Earth Ground, must connect cabinet earth bus with green-yellow wire

d. External Brake Resistor Connection Terminals: For regenerative energy consumption during motor rapid deceleration

2. 24VDC Auxiliary Control Power Wiring

X0A & X0B terminals: Isolated 24VDC control power input, independently supplied to drive control circuit, keep fault diagnosis & communication function effective when main power cuts off

3. Feedback Signal Wiring (D-Sub Connector)

X1 (15pin): Incremental encoder / Sine-Cosine encoder signal interface

X2 (9pin): Resolver rotary transformer feedback wiring port

X5: SSI absolute encoder dedicated interface

4. Control Signal & I/O Wiring (X7, X8 18-pin Combicon Terminal)

Digital input: Servo enable, fault reset, emergency stop, forward/reverse limit switch;

Digital output: Drive ready status, fault alarm output, positioning completion signal;

Analog port: ±10V speed/position command signal input, analog monitoring signal output

•
