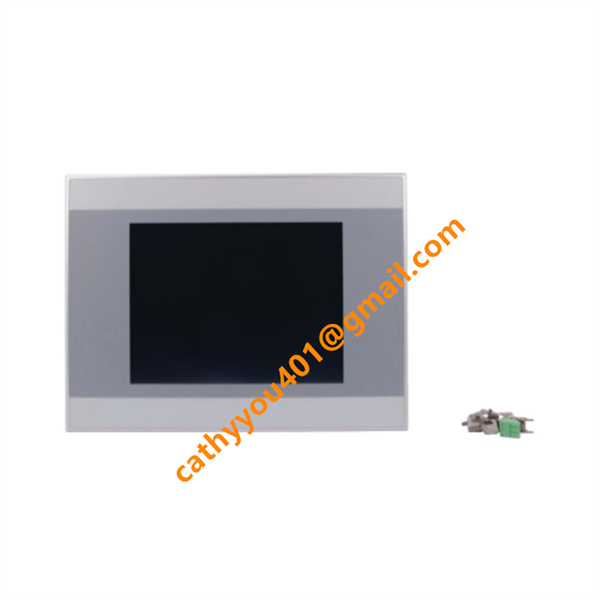

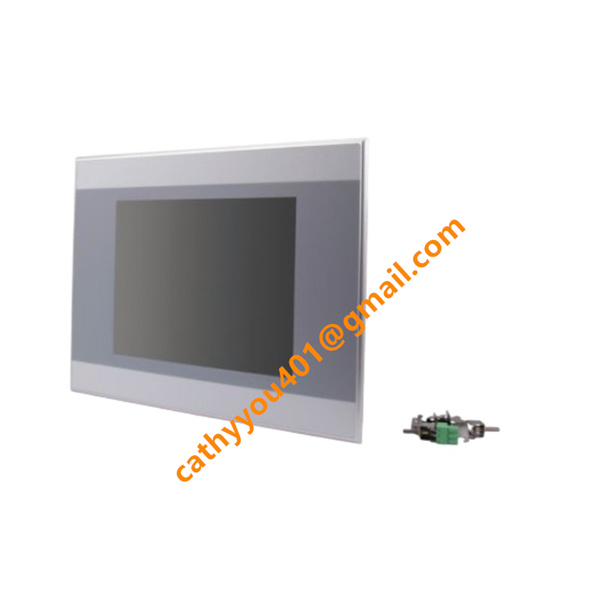

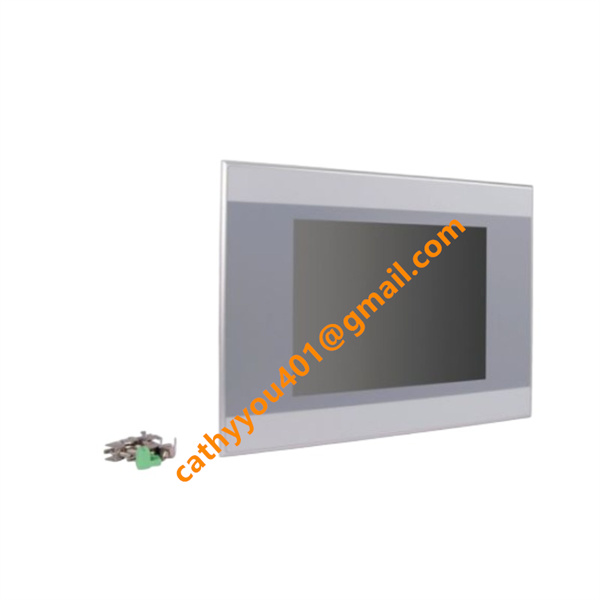

XV-152-D8-10TVR-10 EATON DCS touch HMI panel

• Brand
  EATON
• Model
  XV-152-D8-10TVR-10
• Product Name
  XV100 Series 10.4-inch Resistive Touch Industrial HMI
• Country of Origin
  United States
• HS Code
  85285100
• Dimensions
  260mm height × 211mm width × 49mm
• Weight
  1.3kg (2.87 pounds)
• Operating Temperature
  0°C to +50°C
• Storage Temperature
  -20°C to +60°C
• Power Supply
  24VDC
• Warranty
  12 month
• Product Status
  New and original

EATON XV-152-D8-10TVR-10 Product Introduction & Technical Specifications
Electrical Specifications (Voltage & Current)

Rated operating power supply voltage: 24VDC SELV/PELV safety extra low voltage

Allowable working voltage fluctuation range: 19.2VDC to 30VDC (-20% to +25% of rated voltage)

Typical continuous operating current: 0.6A under full load at 24VDC

Max power consumption: 14.5W

Built-in non-user-replaceable overcurrent fuse for power input protection; voltage dip tolerance: stable operation under 10ms voltage drop from rated 24VDC.

Applicable relative humidity: 10% to 95%, non-condensing environment only

Front panel protection grade: IP65 / NEMA 4X (waterproof and dustproof for cabinet front); rear wiring compartment protection grade: IP20

Backlight service life: 40,000 hours under normal working temperature; vibration and shock resistance complies with IEC 60068 industrial environmental standards.

XV-152-D8-10TVR-10 EATON Core Product Advantages

First, compact integrated metal structure with high front panel protection grade, adapting to dusty and splashing industrial workshop scenes without extra protective cover. Second, abundant built-in multi-protocol communication ports, compatible with mainstream brands of PLC, motion controllers and field buses including Modbus, CANopen, Profibus, realizing one machine multi-device connection and reducing cabinet wiring cost. Third, low power consumption and stable hardware circuit design, with 10-year real-time clock backup powered by soldered CR2032 battery, no frequent maintenance for data storage and time synchronization. Fourth, resistive touch screen supports operation with gloves, avoiding touch failure caused by industrial oil and dust; 65536 color TFT screen delivers clear data display under different ambient brightness. Fifth, complete industrial certification system, meeting global factory safety standards, suitable for export automation equipment. Sixth, simple panel flush installation and standardized wiring terminals, greatly shortening on-site installation and debugging cycle; the embedded Windows CE system supports secondary program development with abundant built-in industrial function libraries such as alarm recording, recipe storage and trend curve display. Seventh, long service life backlight module and wide temperature working range, ensuring stable continuous operation for 24/7 non-stop production lines.

XV-152-D8-10TVR-10 EATON Complete Wiring Method Guidelines

This HMI reserves independent terminals and standard D-Sub connectors for power and communication wiring on the rear side, divided into power wiring and signal communication wiring two parts:

Power wiring steps: First disconnect the whole system power supply, insert the 24VDC positive and negative cables into the green spring power terminal block separately, tighten the terminal screws to avoid loose contact, and connect the equipment ground wire to the dedicated grounding pin of the terminal block for EMC anti-interference. The power cable must use shielded twisted pair wire with copper braided shielding, and the shielding layer fully contacts the metal cabinet ground to reduce electromagnetic interference.

Communication interface wiring steps:

Ethernet port (10/100BaseTX): Use standard industrial shielded CAT5e Ethernet cable to connect PLC, switch or upper monitoring computer; the RJ45 metal shell of the cable must be grounded.

RS232 / RS485 serial port: Adopt 9-pin D-Sub connector, match the A/B signal lines of serial communication according to the official pin definition, shield wire single-point grounding at the HMI end only to prevent ground loop noise.

CAN bus interface: Connect CAN-H and CAN-L twisted pair cables, add terminal matching resistance at the two ends of the CAN bus network as required.

USB Host & USB Device ports: USB Host supports external SD card and mouse/keyboard; USB Device is used for program download from PC, no complex wiring, direct plug-and-play.

All signal wiring should be separated from high-power AC power cables by more than 10cm to avoid signal distortion caused by power interference; after wiring, cover the rear wiring protective cover to maintain IP20 rear protection.

•
