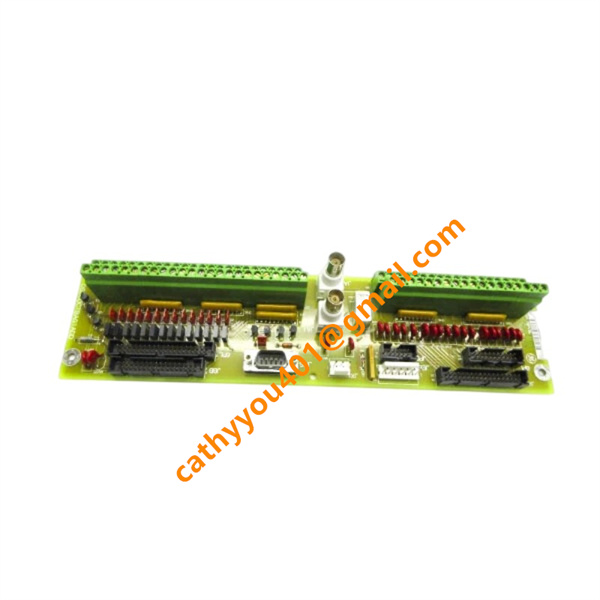

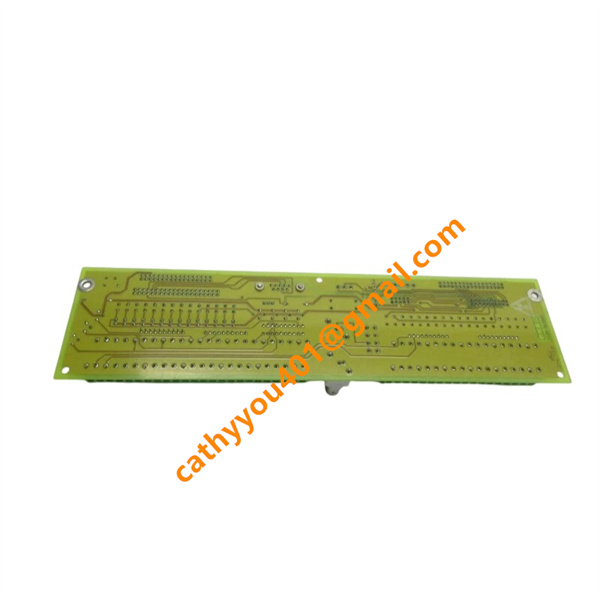

DS200CTBAG1ADD GE C-Core Analog Termination Board

• Brand
  GE
• Model
  DS200CTBAG1ADD
• Product Name
  C-Core Analog Termination Board
• Place of Origin
  United States
• HS Code
  85389091
• Dimensions
  305 mm × 112 mm × 28 mm
• Weight
  0.62 kg
• Operating Temperature
  -20°C ~ +60°C
• Storage Temperature
  -40°C ~ +85°C
• Power Supply
  24VDC
• Warranty
  12 month
• Product Status
  New and original

Backed by abundant in-stock inventory and nearly 20 years of industry experience, our company stands as a leading player in the industrial control sector.We offer an extensive range of industrial control products covering numerous models. Should you have any other requirements, please feel free to contact us, and we will respond to you promptly.

Our main brand:

1.ABB's module cards, touch screens, controllers, etc., such as PP846 touch screen, IGCT starting with 5SHY, PM starting controller, AI, DO starting input/output module, SP starting Bailey module, etc

2.GE's module card CPUs, such as VMIC starter, IS200, IS215, IS400, IS420 series, etc,

3.Emerson's card components and EPRO probes, Westinghouse 1C series, Honeywell CC series, Schneider 140 series, Envision full series, Bentley 3500 series, Rexroth motors and drives, and Foxboro small modules.

Power Input

Diagnostic Power Input: 24 VDC (Supplied by TCPD core board)

Analog Inputs

Standard process current input: 4–20 mA

Special monitoring inputs: Shaft voltage signal, shaft current signal

Analog Outputs

Standard control current output: 4–20 mA (for field actuator and valve regulation)

Communication I/O

COREBUS interface: Dual-channel JAI / JAJ connectors for core system data transmission

IONET interface: 8PL connector for STCA board signal interaction

Functional Interface

JBB: Terminal for 4–20 mA analog inputs and shaft monitoring signals

JAA: Terminal for 4–20 mA analog outputs

JPC: 24 VDC diagnostic power input terminal

1. Power Wiring

The JPD connector is designed for 24 VDC diagnostic power input, which is sourced from the system TCPD core board. Wiring shall be implemented strictly in accordance with terminal polarity to prevent reverse connection. Standard wiring ensures continuous and stable power supply for normal board operation and real-time self-diagnosis functions.

2. Analog Input Wiring (4–20mA / Shaft Monitoring Signals)

The JBB terminal strip serves as the dedicated interface for field analog input signals. It is responsible for accessing 4–20 mA process measurement signals, as well as shaft voltage and shaft current monitoring signals transmitted from field sensors and transmitters. Strip field wires to a standard 10 mm conductor exposure length, fully insert the conductors into cage clamp terminals, fasten the fixing screws tightly, and perform a slight traction test to confirm secure and reliable connection.

3. Analog Output Wiring (4–20mA)

The JAA terminal strip is applied to analog loop output wiring. It transmits 4–20 mA control signals to field actuators, regulating valves and local control loads. Correct loop polarity must be maintained during wiring to guarantee precise and responsive regulation of field equipment.

4. System Bus Communication Wiring

Dual-channel JAI and JAJ COREBUS interfaces connect to the Mark V core control board to support high-speed system data interaction. All unused bus ports must be installed with matched terminal resistors to avoid signal reflection and prevent communication faults. The JEE interface establishes stable signal connection with the STCA core board to realize accurate data synchronization between system boards.

5. Backplane and Cable Wiring Standards

Use dedicated 64-pin flat ribbon cables for inter-board connection, and fully lock the bayonet latches at both cable ends to ensure stable electrical contact. Classify and arrange power cables, signal cables and communication cables separately during wiring to eliminate cross-interference and ensure signal transmission accuracy.

6. Wiring Specifications and Safety Regulations

Strictly avoid short circuits and open circuits at all power terminals and signal loops. All wiring operations must be completed in a fully power-off state, and hot-line wiring is prohibited. After completing all wiring work, conduct a comprehensive inspection to eliminate terminal looseness, misconnection and virtual connection before power-on testing.
