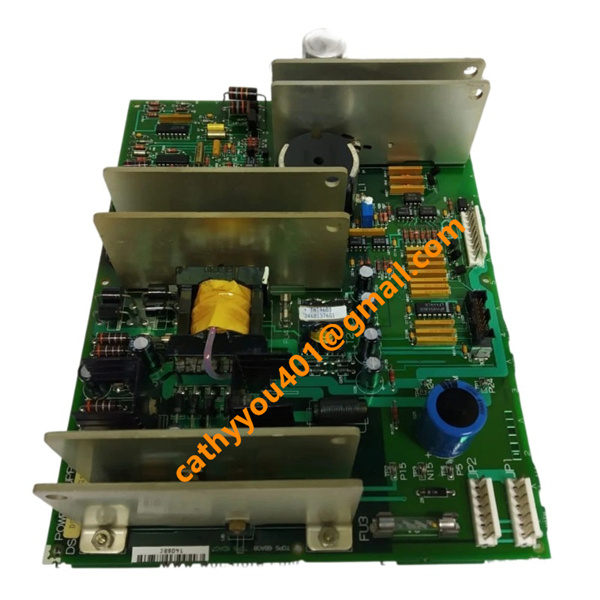

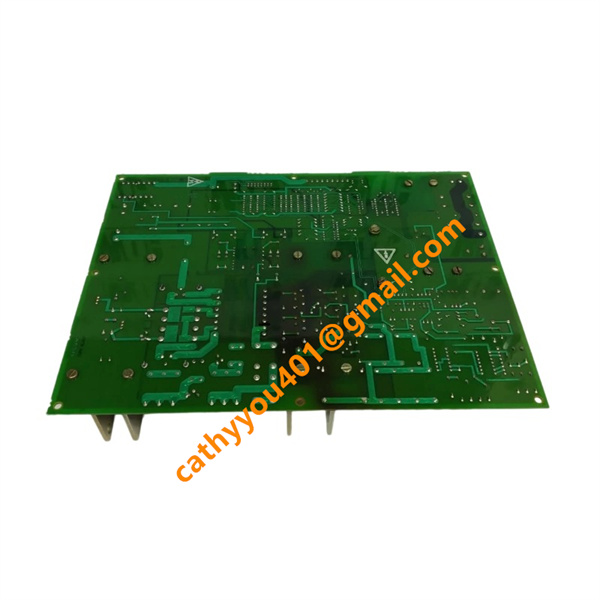

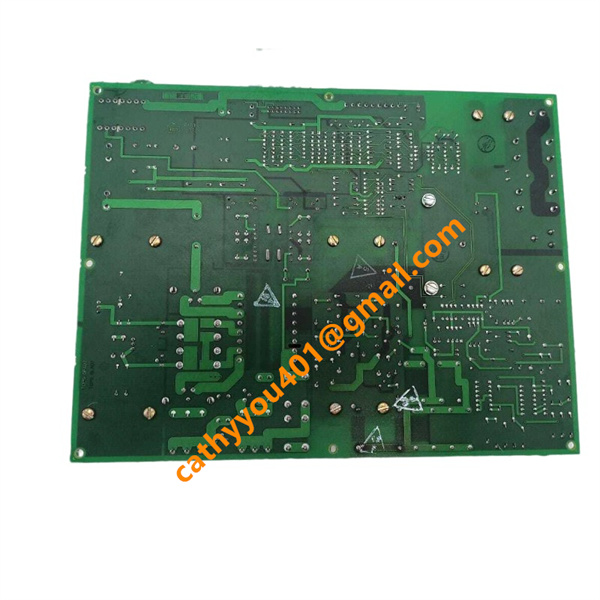

DS200TCPSG1AME GE DCS Input Power Supply Board

• Brand
  GE
• Model
  DS200TCPSG1AME
• Place of Origin
  United States
• HS Code
  85389091
• Dimensions
  280 mm × 214 mm × 65 mm
• Weight
  1.24 kg
• Operating Temperature
  -20°C ~ +60°C
• Storage Temperature
  -40°C ~ +85°C
• Power Supply
  24 VDC
• Warranty
  12 month
• Product Status
  New brand
• Product Name
  Input Power Supply Board

Backed by abundant in-stock inventory and nearly 20 years of industry experience, our company stands as a leading player in the industrial control sector.We offer an extensive range of industrial control products covering numerous models. Should you have any other requirements, please feel free to contact us, and we will respond to you promptly.

Our main brand:

1.ABB's module cards, touch screens, controllers, etc., such as PP846 touch screen, IGCT starting with 5SHY, PM starting controller, AI, DO starting input/output module, SP starting Bailey module, etc

2.GE's module card CPUs, such as VMIC starter, IS200, IS215, IS400, IS420 series, etc,

3.Emerson's card components and EPRO probes, Westinghouse 1C series, Honeywell CC series, Schneider 140 series, Envision full series, Bentley 3500 series, Rexroth motors and drives, and Foxboro small modules.

Input Electrical Parameters

The DS200TCPSG1AME is a dedicated power supply module designed exclusively for the GE Speedtronic Mark V turbine control system, providing stable and reliable power conversion for the entire rack’s control and I/O boards. Its primary input power adopts the standard system-level power supply specification.

Input Voltage: Rated 125 VDC, serving as the core main power input for the Mark V turbine control rack, adapting to industrial DC power supply standards for turbine equipment.

Input Current: Rated continuous operating current is 3.5 A, representing the standard working current under full-load operating conditions, ensuring stable power intake during long-term system operation.

Output Electrical Parameters

This module features multi-channel isolated regulated DC output, which supplies power to various functional boards, signal circuits and control components inside the control system, meeting diverse power demand specifications of different hardware modules.

Output Voltage: Multi-group precision regulated DC outputs including +5 VDC, ±15 VDC, +24 VDC, ±24 VDC. Each voltage rail is independently stabilized to guarantee consistent voltage accuracy for signal processing, logic operation and field signal loop power supply.

Output Current: The maximum total combined output current of all channels reaches 6 A, offering sufficient load capacity to support simultaneous stable operation of multiple system functional modules without overload operation.

Overall Board Power & Protection Parameters

Power Consumption: The typical operating power consumption of the module is 40 W under standard full-load working conditions, with low power loss and high power conversion efficiency, adapting to long-term uninterrupted industrial operation scenarios.

Overcurrent Protection Design: Every independent voltage output rail is equipped with built-in high-sensitivity fuse overcurrent protection. When abnormal current surge, short circuit or overload fault occurs on any output channel, the corresponding protection fuse will act rapidly to cut off the faulty circuit. This design effectively protects the power supply module and rear-end connected control boards from burnout damage, improving the overall safety and anti-fault performance of the turbine control system.

Dedicated Turbine System Power Module

Custom-designed for GE Speedtronic Mark V turbine control systems, serving as the core DC power conversion board for the entire control rack. It converts 125 VDC system raw power into multiple precision regulated DC voltages to power on-board processors, analog I/O boards, RTD sensors and servo valve drive circuits.

Multi-Channel Isolated Stable Output

Supplies diversified standard DC outputs including +5 VDC, ±15 VDC, +24 VDC and ±24 VDC. Each voltage rail features independent voltage stabilization, ensuring accurate and ripple-free power supply for signal sampling, logic operation and field loop circuits. It supports a maximum total output current of 6 A to meet full-load system operation demands.

High-Efficiency Power Conversion

Adopts optimized industrial power circuit topology with low power loss. The typical power consumption is only 40 W under full-load conditions, delivering high power conversion efficiency and stable long-duration continuous operation suitable for 24/7 industrial turbine working scenarios.

Complete Overcurrent Protection Mechanism

Every independent output voltage channel is equipped with built-in fuse overcurrent protection. It can quickly cut off faulty circuits in case of overload, short circuit and current surge, effectively protecting rear-end control modules and avoiding equipment burnout, greatly improving system operational safety.

Industrial-Grade Reliability & Stability

Features compact and rugged industrial board design, with excellent anti-interference, dustproof and high-temperature resistance capabilities. It adapts to harsh on-site working environments of gas and steam turbine units, ensuring consistent power output and minimizing system power supply failure risks.

Plug-and-Play Rack Integration

Standard backplane mounting structure matches Mark V system rack specifications perfectly. It enables fast installation and reliable electrical contact, supporting automatic power matching and stable system self-diagnosis after power-on, with simple maintenance and strong system compatibility.
