7724 zygo DCS Laser Module NEW IN STOCK

• Brand
  zygo
• Model
  7724
• Product Name

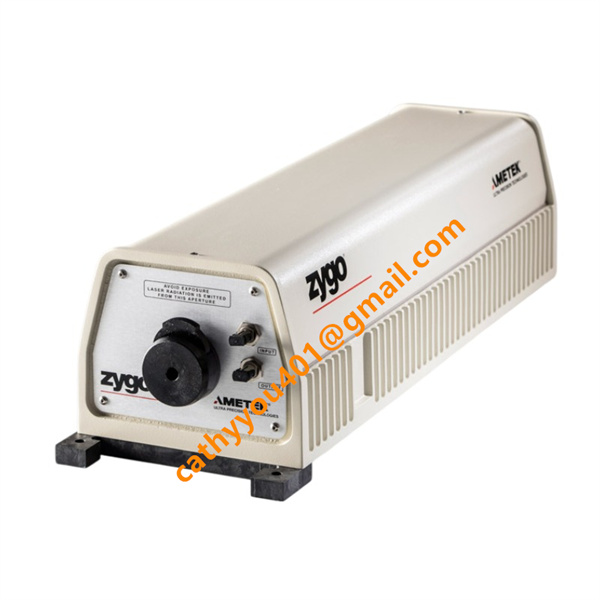

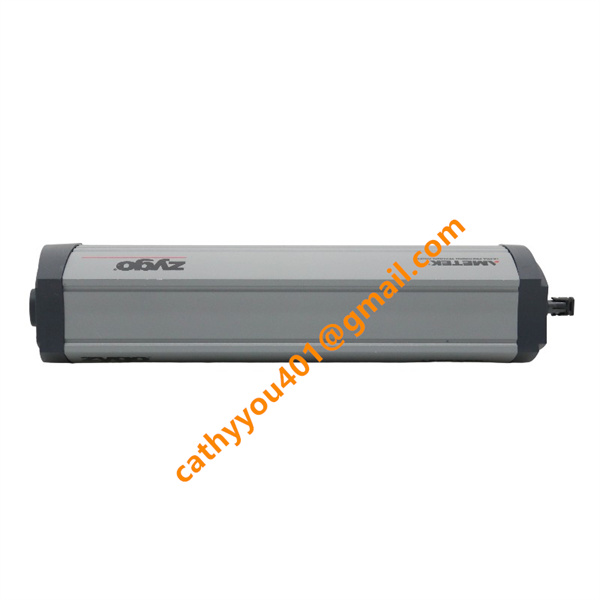

  ZMI™ 7724 Dual-Frequency He-Ne Laser Module
• Place of Origin
  United States
• HS Code
  90275000
• Dimensions
  368 mm × 142 mm × 115 mm
• Weight
  7.9 kg
• Operating Temperature
  18°C ~ 26°C
• Storage Temperature
  0°C to 40°C
• Power Supply
  24VDC
• Warranty
  12 month
• Product Status
  New and original

Backed by abundant in-stock inventory and nearly 20 years of industry experience, our company stands as a leading player in the industrial control sector.We offer an extensive range of industrial control products covering numerous models. Should you have any other requirements, please feel free to contact us, and we will respond to you promptly.

Our main brand:

1.ABB's module cards, touch screens, controllers, etc., such as PP846 touch screen, IGCT starting with 5SHY, PM starting controller, AI, DO starting input/output module, SP starting Bailey module, etc

2.GE's module card CPUs, such as VMIC starter, IS200, IS215, IS400, IS420 series, etc,

3.Emerson's card components and EPRO probes, Westinghouse 1C series, Honeywell CC series, Schneider 140 series, Envision full series, Bentley 3500 series, Rexroth motors and drives, and Foxboro small modules.

Power Inputs

Dual DC power supply inputs: +15 VDC, -15 VDC

Power ground terminal for power return and shielding drain

Communication Interfaces

RS-232 serial communication port (9-pin D-Sub): RX receive input, TX transmit output for laser configuration, status reading and parameter setup

Optical Input & Output

Optical Output: Dual-frequency polarized laser beam, supports up to two delivery modules (7722 DM); output power >900 µW per delivery module

RF Signal Interface: RF input cable connection between laser module and delivery module

PM Fiber Interface: Polarization-maintaining fiber optical link to delivery module

Control & Status Signals

Internal monitoring signal outputs for laser operating status, temperature and fault alarms

No external discrete digital dry-contact I/O; status information is transmitted via RS-232

Ensure all power supplies are disconnected prior to any wiring operations.

Securely mount the Zygo 7724 laser unit onto a vibration-isolation platform and attach the protective earth connection.

Fit the cooling water pipelines, confirm the correct inlet and outlet orientation, check for leaks and maintain the specified flow rate.

Terminate +15 VDC, -15 VDC and ground power cables in accordance with official pinout specifications.

Route the RS232 communication cable between the 7724 unit and host controller; implement proper shielding grounding for signal lines.

Connect the RF cable and polarization-maintaining fiber linking the laser head to the delivery module.

Carry out visual inspection of all cable terminations, fiber end faces and water pipe fittings. Clean contaminated optical surfaces using designated lens tissue.

Recheck wiring polarity, water circuit integrity and cable strain relief arrangements.

Turn on the cooling water supply first and confirm consistent fluid circulation.

Power up the DC supply to activate the 7724 laser head.

Set up RS232 serial communication, retrieve laser status parameters and confirm no active fault alarms.

Let the laser finish the warm-up phase to achieve thermal stability.

Check the dual-frequency laser output power and optical signal quality.

Adjust the optical path alignment and verify signal feedback for every measurement axis.

Execute continuous system diagnostic tests to monitor laser temperature, output power and communication status.

Conduct trial measurements to verify interferometer signal acquisition and data stability.

Document all commissioning parameters and clear transient fault logs after successful completion of all tests.
