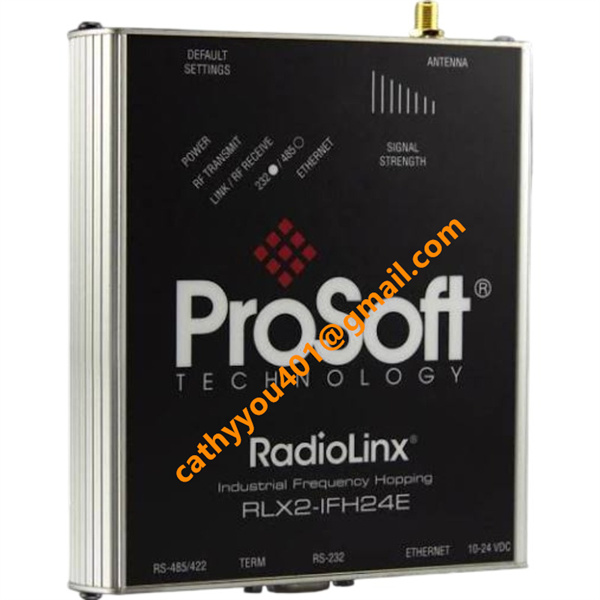

RLX2-IFH24E Prosoft DCS Communication Module

• Brand
  Prosoft
• Model
  RLX2-IFH24E
• Product Name
  Industrial 2.4GHz Frequency Hopping Ethernet Radio
• Place of Origin
  United States
• HS Code
  85176290
• Dimensions
  125mm (W) × 95mm (H) × 45mm (D)
• Weight
  369g (approx. 13oz)
• Operating Temperature
  -40°C ~ +75°C
• Storage Temperature
  -45°C ~ +80°C
• Power Supply
  24vdc
• Warranty
  12 month
• Product Status
  New and original

Prosoft RLX2-IFH24E Introduction and Technical Specifications

Electrical Parameters

Operating Voltage: 9VDC to 24VDC wide industrial voltage range

Average Power Consumption: 6W

Peak Power Consumption: 12W

Communication Interface: 10/100Mbps Ethernet port, RS232/RS422/RS485 serial port

Wireless Band: License-free 2.4GHz industrial frequency band

Supports serial tunneling and TCP/UDP packet encapsulation, compatible with multiple industrial communication protocols

Built-in overvoltage and reverse polarity protection for industrial power supply adaptability

RLX2-IFH24E Prosoft Product Advantages

1. Professional frequency hopping wireless technology effectively resists industrial signal interference and avoids frequency congestion.

2. Multi-mode configurable functions, supporting master, repeater and remote working modes for flexible network topology construction.

3. Dual Ethernet and serial communication design realizes integrated wireless transmission of network and serial data.

4. Wide-range DC voltage input and ultra-wide temperature design adapt to diverse industrial power and environment conditions.

5. Smart switch optimization technology ensures low-delay and high-reliability industrial data transmission.

6. License-free 2.4GHz band saves network operation costs and simplifies on-site deployment.

7. Compact lightweight industrial structure, easy installation and maintenance, reducing on-site engineering costs.

RLX2-IFH24E Prosoft  Application Scenarios

Mainly applied in industrial factory automation, process control system wireless networking, remote equipment monitoring, oil and gas field data transmission, water treatment automation and outdoor industrial wireless communication scenarios. It is suitable for industrial sites where wired network wiring is difficult and stable wireless data transmission is required.

RLX2-IFH24E Prosoft Wiring & Installation Method

Power Wiring: Standard terminal block wiring for 9-24VDC DC power input, supporting on-site quick wiring

Signal Wiring: RJ45 interface for Ethernet signal connection, DB9 serial terminal for serial signal wiring, RP-SMA antenna interface for external antenna installation

Installation Method: Standard DIN rail mounting and wall-mounted installation, compact structure suitable for cabinet and on-site equipment installation

Equipped with status indicator lights for power, network and signal strength, facilitating real-time operation monitoring and fault diagnosis

•
