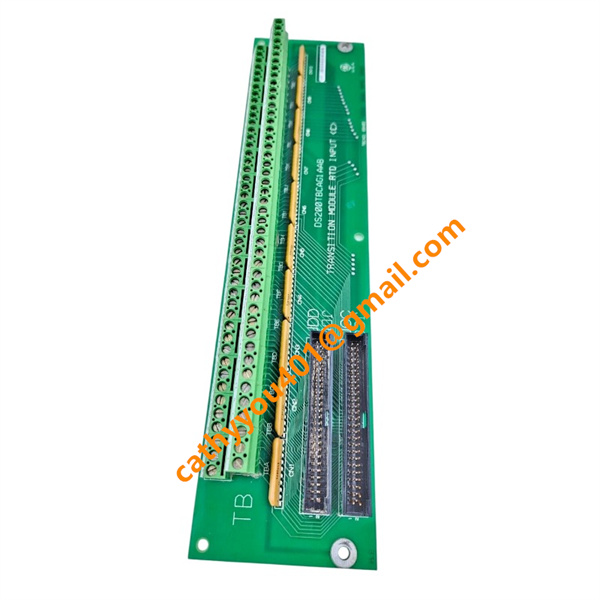

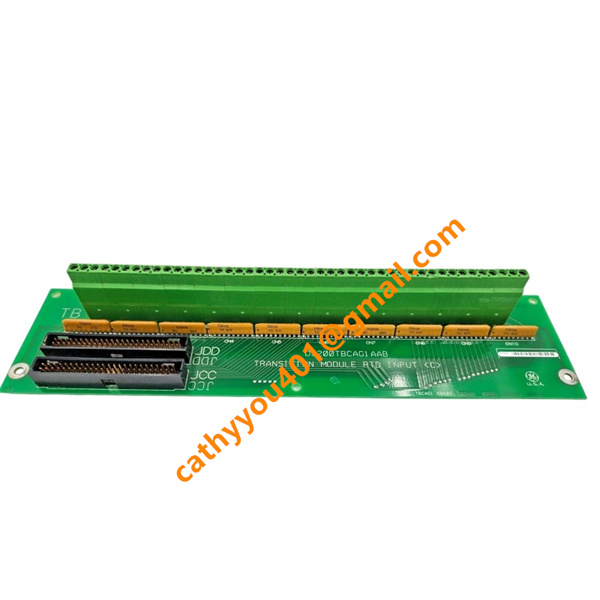

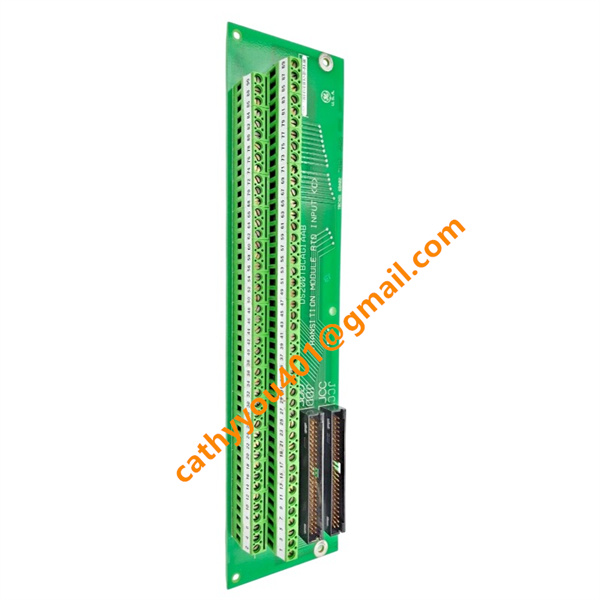

DS200TBCAG1AAB GE DCS Analog I/O Terminal Board

• Brand
  GE
• Model
  DS200TBCAG1AAB
• Product Name
  Analog I/O Terminal Board
• Place of Origin
  United States
• HS Code
  85389091
• Dimensions
  375 mm × 110 mm × 26 mm
• Weight
  0.60 kg
• Operating Temperature
  -20°C ~ +60°C
• Storage Temperature
  -40°C ~ +85°C
• Power Supply
  24 VDC
• Warranty
  12 month
• Product Status
  New and original

Backed by abundant in-stock inventory and nearly 20 years of industry experience, our company stands as a leading player in the industrial control sector.We offer an extensive range of industrial control products covering numerous models. Should you have any other requirements, please feel free to contact us, and we will respond to you promptly.

Our main brand:

1.ABB's module cards, touch screens, controllers, etc., such as PP846 touch screen, IGCT starting with 5SHY, PM starting controller, AI, DO starting input/output module, SP starting Bailey module, etc

2.GE's module card CPUs, such as VMIC starter, IS200, IS215, IS400, IS420 series, etc,

3.Emerson's card components and EPRO probes, Westinghouse 1C series, Honeywell CC series, Schneider 140 series, Envision full series, Bentley 3500 series, Rexroth motors and drives, and Foxboro small modules.

Power Input

Operating Voltage: 24 VDC

Operating Current: 100–500 mA

Analog Inputs

RTD Temperature Input: Support PT100 / PT1000 sensors

Standard Voltage Input: 0–10 VDC

Standard Current Input: 4–20 mA

Analog Outputs

Standard Voltage Output: 0–10 VDC

Standard Current Output: 4–20 mA

Interface Features

Equipped with dual 90-point terminal blocks for field signal termination

Dual 50-pin JCC/JDD connectors for internal system signal transmission

Acts as analog signal routing and termination board for GE Speedtronic Mark V turbine control system, supporting full-range analog I/O signal matching

1. Pre-Installation Preparation

Completely shut down the system power and field loop power supply. Inspect the board for physical damage, burnt spots and bent pins. Confirm the rack slot and backplane specifications are fully compatible with the GE Speedtronic Mark V turbine control system.

2. Board Mounting

Smoothly insert the DS200TBCAG1AAB board into the specified rack slot. Ensure full and reliable contact with the backplane, then tighten the fixing screws to firmly secure the board in position.

3. Backplane Cable Connection

Connect standard flat ribbon cables to the board’s 50-pin JCC and JDD interfaces as well as system core modules. Fasten and lock all connectors to guarantee stable power supply and continuous data transmission.

4. Field Signal Wiring

Complete field wiring for RTD temperature signals, 4–20 mA current signals and 0–10 VDC voltage analog input and output signals through terminal blocks. Strictly comply with polarity standards during wiring. Thoroughly eliminate hidden risks of loose connection, open circuit and short circuit.

5. Pre-Power-On Check

Lay power cables, signal cables and communication cables separately to prevent electromagnetic interference. Conduct a comprehensive inspection to confirm all wiring is accurate and standardized. Install matched terminal resistors for all unused signal ports.

6. Power-On & Commissioning

Restore system power in compliance with standard operating procedures. The board will automatically initiate self-diagnosis after power-on. Confirm the status LED indicates normal operation, and verify all analog channels achieve precise signal sampling and stable control output before official system operation.
