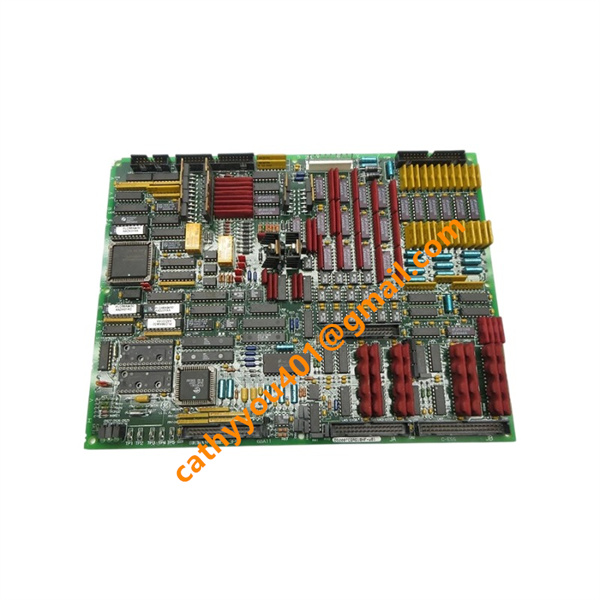

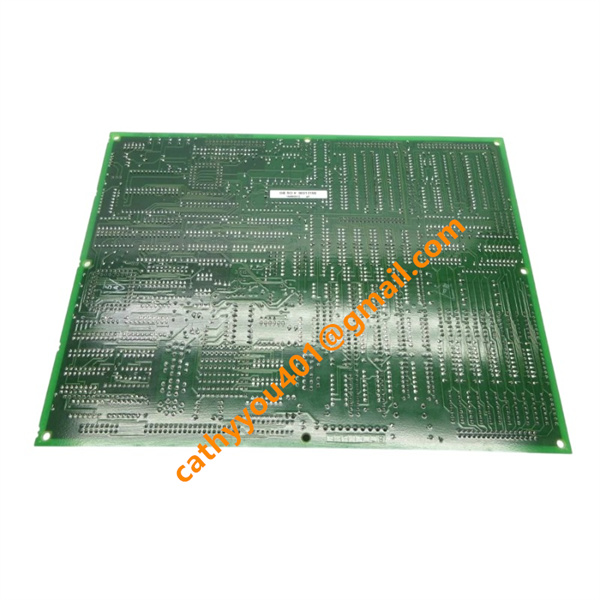

DS200TCQAG1BHF GE DCS Analog I/O Board

• Brand
  GE
• Model
  DS200TCQAG1BHF
• Product Name
  TCQA RST Analog I/O Board
• Place of Origin
  United States
• HS Code
  85389091
• Dimensions
  262 mm × 178 mm × 30 mm
• Weight
  0.66 kg
• Operating Temperature
  -20°C ~ +60°C
• Storage Temperature
  -40°C ~ +85°C
• Power Supply
  24VDC
• Warranty
  12 month
• Product Status
  New and original

Backed by abundant in-stock inventory and nearly 20 years of industry experience, our company stands as a leading player in the industrial control sector.We offer an extensive range of industrial control products covering numerous models. Should you have any other requirements, please feel free to contact us, and we will respond to you promptly.

Our main brand:

1.ABB's module cards, touch screens, controllers, etc., such as PP846 touch screen, IGCT starting with 5SHY, PM starting controller, AI, DO starting input/output module, SP starting Bailey module, etc

2.GE's module card CPUs, such as VMIC starter, IS200, IS215, IS400, IS420 series, etc,

3.Emerson's card components and EPRO probes, Westinghouse 1C series, Honeywell CC series, Schneider 140 series, Envision full series, Bentley 3500 series, Rexroth motors and drives, and Foxboro small modules.

Applicable System: GE Speedtronic Mark V Turbine Control System

Analog Inputs

Thermocouple inputs equipped with cold junction compensation;

4–20 mA analog current inputs;

±10 VDC analog voltage inputs;

LVDT / LVDR position feedback inputs;

Vibration measurement inputs;

Pulse frequency inputs;

Power supply supervision inputs.

Analog & Discrete Outputs

4–20 mA analog current outputs (on-board jumper configurable for 20 mA or 200 mA maximum output);

Analog outputs for servo valve driving;

Discrete outputs for relay actuation;

Trip control output signals;

Interface signals for generator and power line connections.

Connector Signal Assignment

JA: Thermocouple inputs and cold junction compensation signals;

JB: 4–20 mA analog inputs and 4–20 mA analog outputs;

JD: Trip output signals routed to TCTG board;

JE: Servo valve drive outputs, relay drive outputs, pulse signals and power supervision inputs;

JF: LVDT/LVDR position feedback input signals;

JG: Vibration inputs and ±10 VDC analog voltage inputs.

Board Hardware Specifications

4 units of 34-pin connectors and 2 units of 40-pin connectors;

On-board jumpers supporting signal routing and output range setup;

RS232 serial interface for on-site debugging and module testing;

6 diagnostic LED indicators for operational status monitoring.

Applicable System: GE Speedtronic Mark V Gas Turbine Control System

Functions as an integrated analog and discrete signal interface board for turbine control loops;

Compatible with a wide range of analog input signals: thermocouple, 4–20mA current, ±10 VDC voltage, LVDT/LVDR position feedback and vibration signals;

Integrated cold junction compensation circuitry ensures accurate thermocouple signal measurement;

Offers configurable analog outputs; onboard jumpers allow selection of 20mA or 200mA maximum output to drive servo valves;

Provides discrete relay drive outputs as well as turbine trip control signals;

Onboard jumpers facilitate flexible signal routing and output range configuration;

Comes with four 34-pin connectors and two 40-pin field connectors for external signal wiring;

Embedded RS232 serial interface supports field debugging and module functional testing;

Six diagnostic LED indicators enable real-time status monitoring and rapid fault troubleshooting;

Adopts high-precision A/D and D/A conversion for stable signal processing;

Supports TMR Triple Modular Redundant architecture to satisfy demanding critical turbine control requirements;

Multi-layer industrial PCB construction delivers superior anti-interference capability, suitable for severe power plant operating conditions;

Standard rack-mount form factor simplifies installation, replacement and daily maintenance;

Exchanges data with the main processor board through the system backplane bus.
