343166 Kongsberg CRP Control Room Operator Panel

• Brand
  Kongsberg
• Model
  343166
• Product Name
  CRP Control Room Operator Panel
• Place of Origin
  Norway
• Customs HS Code
  8537101190
• Power Supply
  18 V DC to 32 V DC
• Dimensions
  320 mm × 245 mm × 60 mm
• Weight
  1.85 kg
• Operating Temperature
  -25°C to +70°C
• Storage Temperature
  -40°C to +85°C
• Warranty
  12 month
• Product Status
  brand new

343166 (Kongsberg, CRP Control Room Panel, 6200459)

Input & Output: No analog or digital process I/O channels for field instruments; integrated trackball, function keys and keypad serve as human-machine input; RS‑422 and USB 2.0 HID interfaces transmit operation commands to the host unit; no relay output or analog output for driving on-site actuators.

Supply voltage: 18–32 VDC, galvanically isolated power input;

Power consumption: Nominal 10 W, maximum 20 W; typical operating current 0.6 A @ 24 VDC;

Protection class: IP20 (for indoor control room installation);

Vibration resistance: Complies with marine standard IEC 60068-2-6;

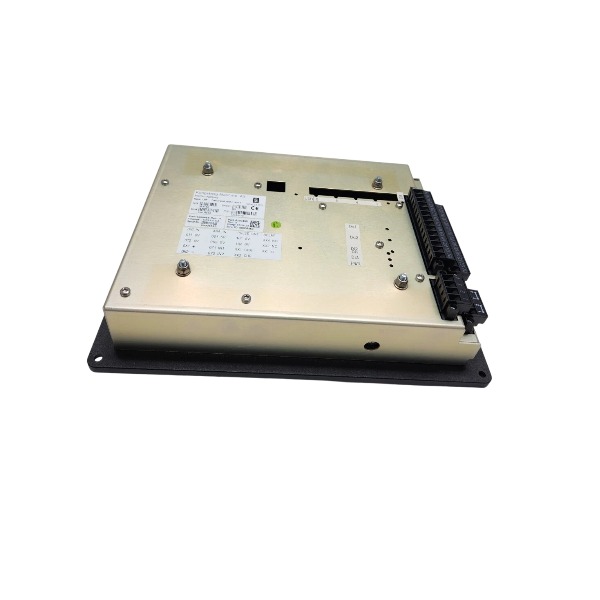

Communication interface: RS‑422 (isolated), USB 2.0 Type B;

Compatible systems: Kongsberg K-Chief 600 / K-Chief 700, Dynamic Positioning (DP) systems, vessel machinery alarm and monitoring systems;

Compatible software: Kongsberg K-Chief operator station software, DP station HMI software;

Protocols: RS‑422 serial communication, USB 2.0 HID protocol;

Mounting: Desktop or console mounting;

EMC standard: Meets marine EMC requirements IEC 60945;

The CRP control room panel is a dedicated human-machine input device built for Kongsberg marine monitoring and dynamic positioning systems. It functions as a local operator input unit inside the control room, rather than an I/O module for signal acquisition or actuator driving.

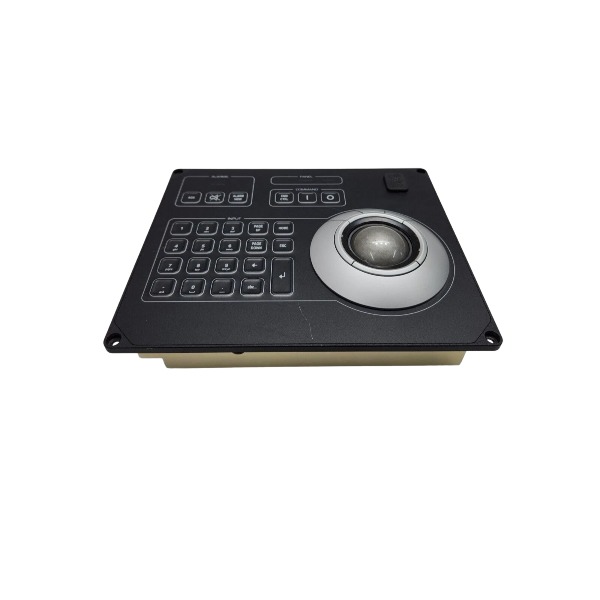

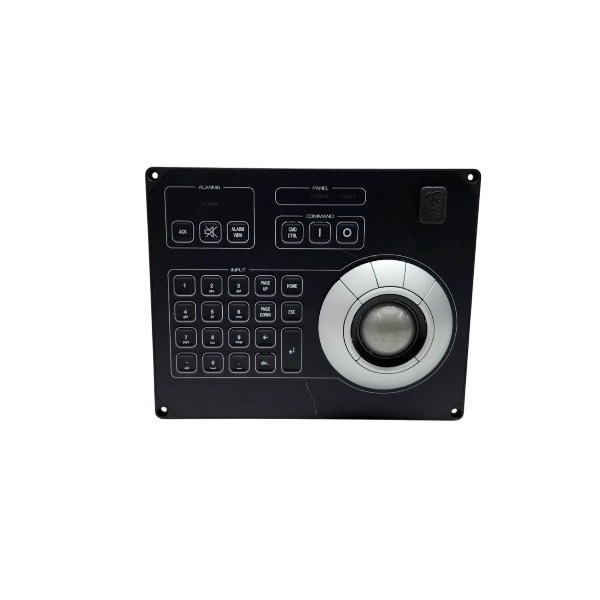

Equipped with an integrated trackball, dedicated function keys and numeric keypad, it enables operators to navigate and operate the HMI workstation. Operators can move the cursor, select menu options, switch system display pages, acknowledge alarms and enter setpoint values directly through these physical controls.

It sends all operator commands and trigger signals to the connected host workstation via isolated RS‑422 serial port and USB 2.0 HID interface. Bidirectional communication handshaking is supported to guarantee reliable transmission of operation commands and prevent signal dropout.

It facilitates alarm management for vessel machinery monitoring systems. Operators can acknowledge single or grouped alarms, reset alarm indicators and retrieve alarm history records on the K-Chief HMI through the panel keys.

It acts as a backup physical input for Dynamic Positioning (DP) operator stations. If the touchscreen malfunctions or becomes inaccessible, this panel serves as an alternative input method to browse DP control pages, check position status and modify related setpoints.

Compatible with Kongsberg K-Chief 600 and K-Chief 700 platforms, it allows operators to toggle between various monitoring screens, such as engine room conditions, auxiliary equipment parameters, tank level data, valve status and vessel power distribution displays.

It is designed for console mounting and 24/7 continuous marine operation. Signal isolation is implemented on internal communication circuits to mitigate interference generated by the ship’s power network. It contains no analog input, digital input, relay output or analog output channels for field sensors and actuators.

Constructed in compliance with marine EMC and vibration standards, it delivers consistent input performance under shipboard vibration and electromagnetic interference within control room environments. It does not perform logic control, data computation or standalone signal processing. All logic judgment and data processing tasks are undertaken by the connected host system.
