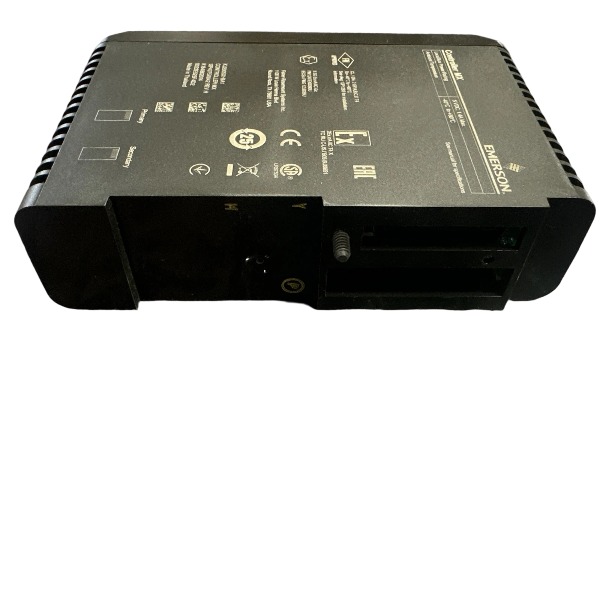

KJ2005X1-BA1 VE3007 Emerson DeltaV Digital Input Module

• Brand
  Emerson
• Model
  KJ2005X1-BA1 VE3007
• Product Name
  DeltaV Digital Input Module
• Place of Origin
  United States
• Customs HS Code
  85389000
• Power Supply
  120mA
• Dimensions
  132mm × 124mm × 26mm
• Weight
  0.34kg
• Operating Temperature
  -40°C to +70°C
• Storage Temperature
  -45°C to +85°C
• Warranty
  12 month
• Product Status
  original

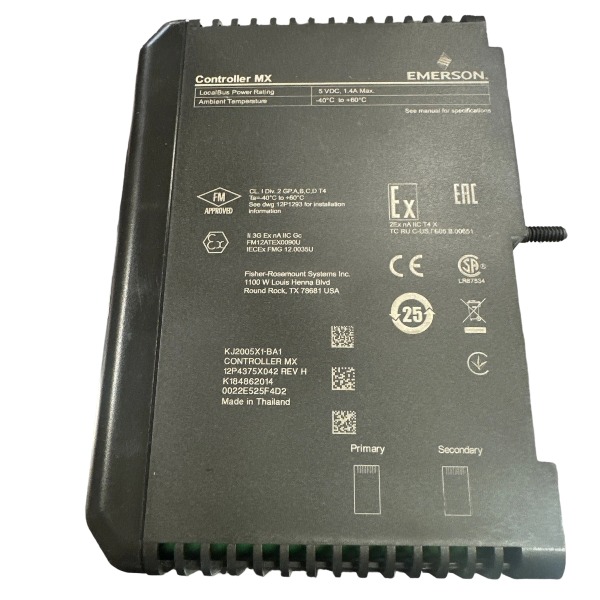

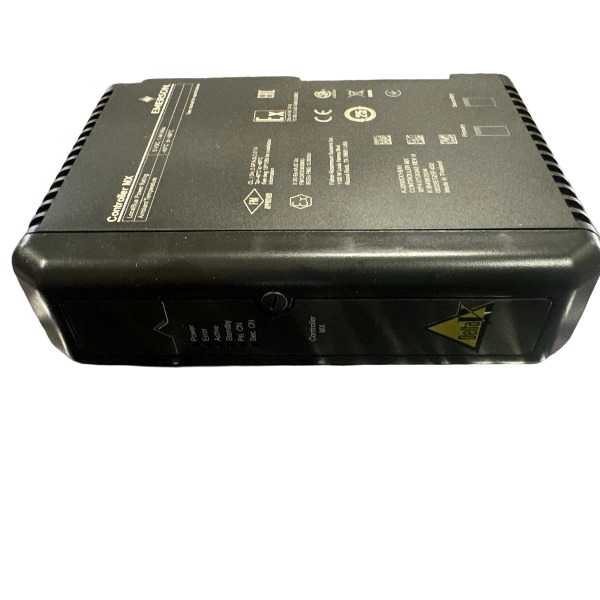

Emerson KJ2005X1-BA1 VE3007 MX Controller Functions

Product type: DeltaV MX high-performance controller designed for Emerson DeltaV DCS platforms

Real-time control execution: Executes PID loops, interlock logic, batch sequencing and advanced process control algorithms to deliver closed-loop process regulation.

I/O management: Communicates with DeltaV CHARM and S-series I/O modules over the Local Bus, enabling automatic I/O detection, addressing and flexible signal grouping.

Redundancy support: Supports 1:1 redundant controller configuration with bumpless transfer to maintain uninterrupted control.

Data and alarm processing: Generates high-resolution timestamps, processes alarm events and historical trend data, and supports audit trails and production batch traceability.

System communication: Exchanges data with DeltaV workstations, peer controllers and field devices across the control network. It includes native PROVOX I/O compatibility to facilitate legacy system migration.

Diagnostic function: Features onboard self-diagnostics covering hardware malfunctions, communication errors and I/O channel abnormalities. It transmits operational status and fault alerts to DeltaV asset management software.

Hot-swap capability: Supports online module replacement without process shutdown. Plug-and-play operation eliminates the need for jumper configuration.

Task scheduling: Implements multi-task real-time scheduling for medium-to-large process control applications, supporting approximately 1500 real-time I/O points.

Protection mechanism: Integrates a hardware watchdog timer and fault protection logic. The controller transitions to a predefined safe state upon severe failures.

Emerson KJ2005X1-BA1 (VE3007) MX Controller Advantages and Features

Product series: DeltaV MX high-performance controller

High computing performance: It delivers twice the processing capability and memory size of the MQ controller. It supports sophisticated PID control loops, batch sequences, interlock logic and advanced process control, and can handle roughly 1500 real-time I/O signals.

1:1 hot redundancy: Supports paired redundant controller configuration with bumpless transfer. It maintains continuous control during a single controller fault and allows online firmware upgrades.

Excellent backward compatibility: Natively supports PROVOX I/O interfaces to facilitate legacy system migration. It serves as a drop-in replacement for the MQ controller with minimal reconfiguration work.

Flexible I/O coordination: Interacts with DeltaV CHARM and S-series I/O modules via the Local Bus, enabling automatic module detection, address assignment and flexible signal grouping.

Comprehensive self-diagnosis: Integrated hardware watchdog and continuous monitoring cover communication links, I/O channels and internal faults. It pushes alarms and equipment health data to the DeltaV asset management platform.

Hot-swap capability: It can be replaced online without shutting down the control system. Plug-and-play operation removes the need for jumper setup during commissioning.

Stable industrial adaptability: It features a wide operating temperature range and conformal coating for ISA G3 airborne contaminant environments, with strong resistance to shock and vibration.

Rich communication interfaces: Dual Ethernet ports provide redundant links for the DeltaV control network, enabling data exchange with operator workstations, peer controllers and field devices.

Reliable safety design: It switches to a predefined safe state upon critical failures. It supports time-stamped event logging, alarm management and audit trails for full process traceability.

Scalable modular architecture: Adopts standard DeltaV rack-mounted form factor for easy cabinet installation, system expansion and routine maintenance.
