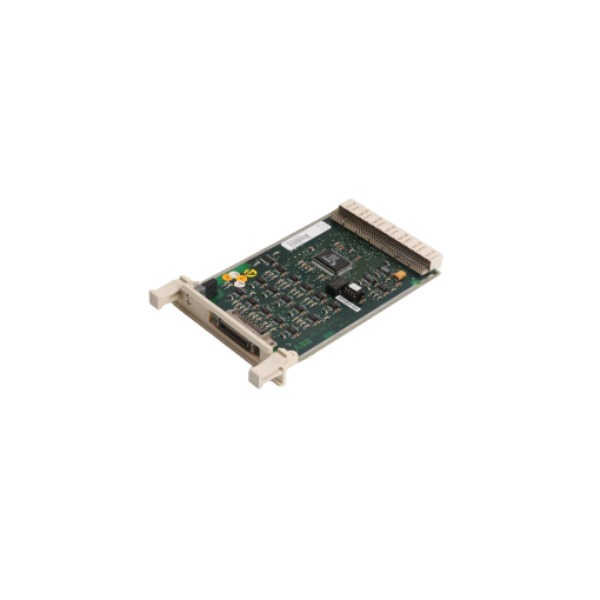

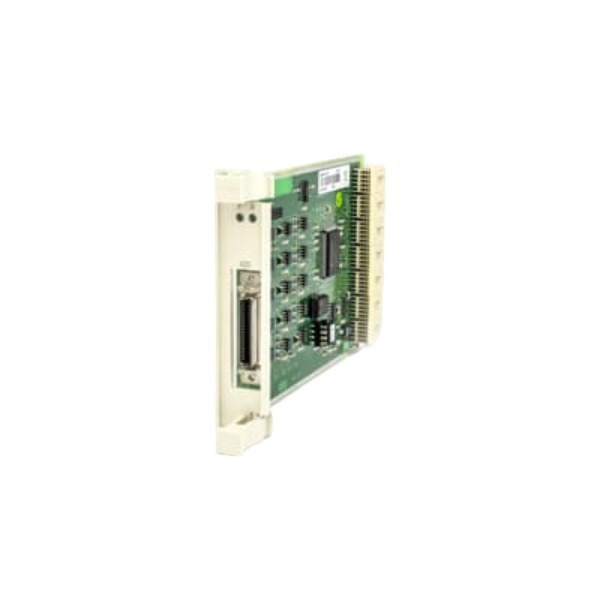

3BSE001077R1 CI540 ABB S100 I/O Bus Extension Module brand new

• Brand
  ABB
• Model
  CI540
• Product Name
  S100 I/O Bus Extension Module
• Place of Origin
  Sweden
• Customs HS Code
  85389000
• Part number
  3BSE001077R1
• Dimensions
  234mm × 108mm × 31.5mm
• Weight
  0.115kg
• Operating Temperature
  -20°C to +60°C
• Storage Temperature
  -40°C to +85°C
• Warranty
  12 month
• Product Status
  new

ABB 3BSE001077R1 CI540 Features

Applicable system: ABB Advant Master / MasterPiece 200 control system

Core function: Serves as an S100 bus extender to add remote I/O stations and extend the coverage of the S100 I/O bus

Bus performance: Supports deterministic real-time transmission over the S100 bus, enabling cyclic exchange of digital and analog I/O data between the main controller and distributed I/O devices

Mechanical structure: Compact rack-mountable plug-in module, designed for installation within the Advant Master backplane rack

Power supply: Draws power from the rack backplane; no dedicated external power terminals required

Diagnostic capability: Equipped with front-panel LED status indicators and embedded self-diagnostics. It detects bus communication failures, module hardware malfunctions and offline conditions of remote I/O stations

Isolation and anti-interference: Features galvanic isolation on the S100 bus interface to mitigate voltage surges and electromagnetic interference in industrial field environments

Expansion capacity: Increases the total quantity of S100 I/O modules that can be accessed, overcoming the I/O limit of the local rack

Backplane communication: Interacts with the main controller through the internal system backplane bus, relaying I/O setpoints and uploading field measurement values and equipment status

Environmental adaptability: Optimized for industrial cabinet mounting, delivering reliable operation across a broad temperature range under non-condensing humidity

Compatibility: Compatible with the S100 series I/O modules of the Advant Master DCS, simplifying system retrofits and distributed remote I/O deployment

ABB 3BSE001077R1 CI540 Application Cases Across Industries

Case 1: Thermal Power Generation

Integrated into Advant Master DCS for boiler and turbine process control, the CI540 module extends S100 bus communication to remote I/O racks deployed on boiler platforms, pump rooms and field valve clusters. It provides high-precision, deterministic real-time data interaction for furnace temperature monitoring, drum water level regulation and turbine safety interlock protection. The module effectively expands system I/O capacity without replacing the main controller, perfectly matching retrofit and upgrade scenarios for legacy thermal power units.

Case 2: Chemical & Petrochemical Industry

Widely used in continuous and batch chemical processes including distillation, chemical reaction and storage tank area monitoring. The CI540 connects S100 remote I/O stations in hazardous field areas to the central DCS controller. It stably transmits 4-20mA analog signals of process pressure, flow and temperature, as well as digital emergency shutdown interlock signals. With built-in bus isolation performance, it resists strong electromagnetic interference generated by large-scale pumps and control valves, ensuring stable operation of process control and safety protection logic.

Case 3: Metallurgy & Steel Production

Applied in automatic control systems for heating furnaces, continuous casting machines and rolling mills. Production line sensors and actuator I/O racks are dispersedly arranged over long-distance field areas. The CI540 extends S100 bus coverage to realize synchronous transmission of rolling speed, furnace heating parameters and cooling water interlock signals. It maintains stable cyclic I/O communication under severe EMI interference from high-power driving equipment, guaranteeing continuous and reliable production control.

Case 4: Water Treatment & Water Supply Projects

Suitable for automatic control of raw water intake, filtration, disinfection and sewage treatment processes. Remote I/O racks are arranged in pumping stations, chemical dosing workshops and sludge treatment units. The CI540 assists the Advant Master controller in collecting water quality parameters, liquid level data and pump operating status, and outputs control instructions for valves and frequency converters. It supports gradual I/O expansion, adapting to capacity upgrading and phased reconstruction of water treatment plants.

Case 5: Pulp & Paper Manufacturing

Deployed in core control links such as pulp cooking, paper machine operation and drying section processing. Field I/O racks are separately configured in pulp workshops and long-distance paper production lines. The CI540 extends the S100 bus to transmit real-time data of paper web tension, moisture content and temperature, and realizes closed-loop regulation of production speed and process pressure. It supports partial system upgrading while fully reusing original Advant Master controllers and S100 I/O hardware, reducing renovation costs.

Case 6: Oil & Gas Pipeline and Compressor Station

Used for unattended monitoring and safety control of natural gas compressor stations and pipeline valve chambers. The CI540 connects field S100 remote I/O racks to the central control system, collecting compressor pressure, flow and vibration monitoring signals, and implementing safety interlock logic for emergency valve shutdown. It adapts to long-distance and distributed field I/O layout, ensuring reliable remote control and safety monitoring for wide-range oil and gas pipeline facilities.
