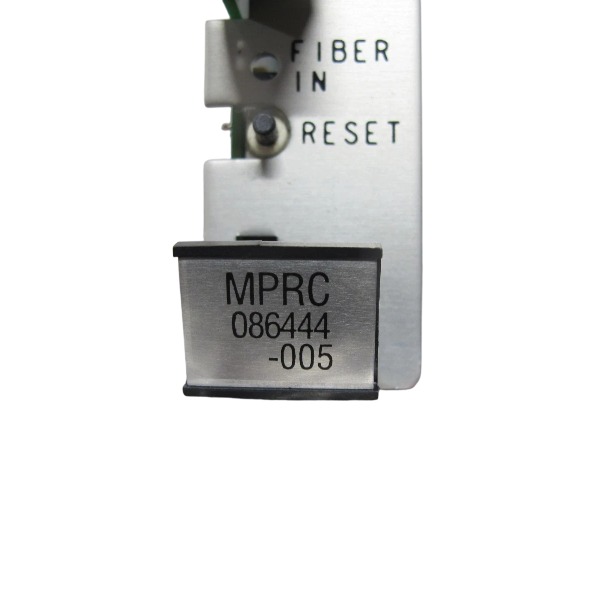

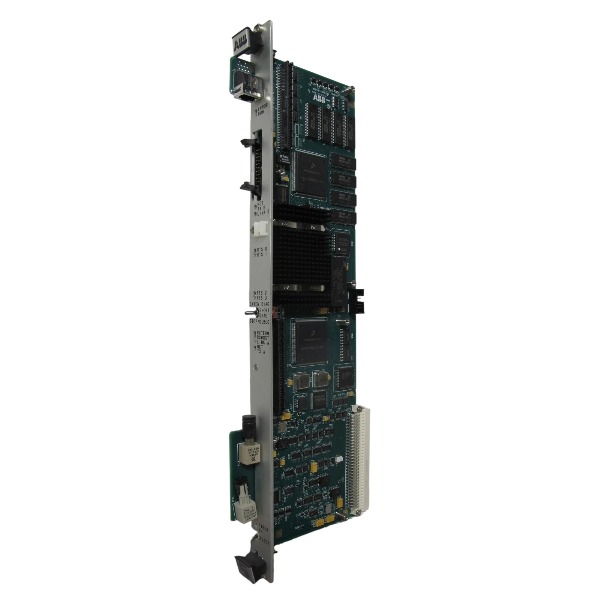

MPRC 086444-005 ABB Process Board in stock

• Brand
  ABB
• Model
  MPRC 086444-005
• Product Name
  High Precision Measurement Process Board
• Place of Origin
  Sweden
• Customs HS Code
  85423190
• Power Supply
  0.4 A
• Dimensions
  430 mm × 140 mm × 48 mm
• Weight
  0.75 kg
• Operating Temperature
  -20°C to +60°C
• Storage Temperature
  -40°C to +85°C
• Warranty
  1 year
• Product Status
  new

Functions of ABB MPRC 086444-005

High-precision acquisition and signal conditioning for analog signals transmitted from field sensors and transducers

Converts raw analog input signals into digital data and transmits to the host control system

Carries out real-time high-speed measurement and processing of various process variables

Implements signal filtering and noise suppression to enhance overall measurement accuracy Enables real-time data communication with the main controller through the backplane bus

Integrates channel-level diagnostics to detect faults, monitor abnormal signals and trigger alarms

Processes measurement data for turbine and rotating machinery protection systems

Supports continuous long-term operation in critical power and process automation scenarios

Captures and stores measurement events to support post-fault review and analysis

Delivers stable high-resolution measurement feedback for closed-loop process control

Commissioning Steps for ABB MPRC 086444-005

Check the module part number and hardware condition. Inspect the circuit board and connectors for any physical damage prior to installation.

Shut down the power supply of the system rack. Install the MPRC module firmly on the backplane and secure the module latch.

Verify wiring connections of field analog sensors. Check signal cables to rule out short-circuit and open-circuit faults.

Energize the rack and observe module LED indicators to confirm successful hardware initialization.

Set up backplane bus communication between the MPRC module and main controller.

Download the completed project configuration to the controller and synchronize parameter settings to the MPRC module.

Carry out channel calibration for analog input signals to guarantee measurement precision.

Perform signal simulation testing on every channel. Compare module readouts with signals from the reference signal generator.

Activate onboard channel diagnostics. Validate fault detection and alarm response under abnormal signal conditions.

Launch continuous online monitoring to assess data stability of turbine and rotating machinery measurement signals.

Back up commissioning configurations and event logs, then finish the functional acceptance test.

Lock the final configuration file and archive all test records for later maintenance and reference.
