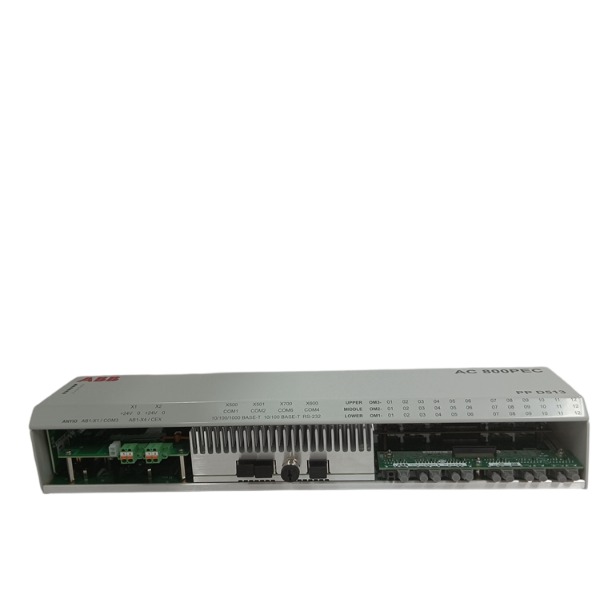

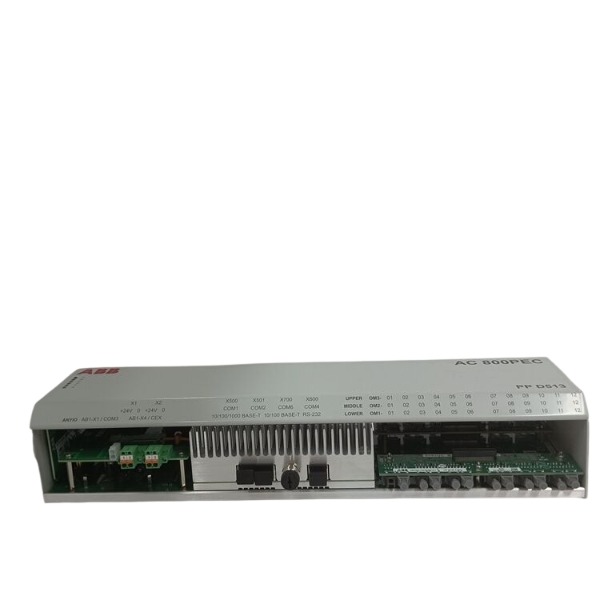

PPD513AOC-100440 3BHE039724R0C3D ABB DCS Control Module

• Brand
  ABB
• Model
  PPD513AOC-100440
• Product Name
  Excitation Control Module
• Place of Origin
  Switzerland
• Customs HS Code
  8538900000
• Part number
  3BHE039724R0C3D
• Dimensions
  233 mm (height) × 128 mm (width) × 32 mm (depth)
• Weight
  0.75 kg
• Operating Temperature
  0°C to +60°C
• Storage Temperature
  -40°C to +85°C
• Warranty
  12 month
• Product Status
  brand new

ABB PPD513AOC-100440, Part No. 3BHE039724R0C3D Typical Application Scenarios

Generator excitation control and turbine governing for thermal power units; boiler combustion regulation in power plants

Power electronic converter control for wind and photovoltaic grid-connected systems, including inverter closed-loop control and grid synchronization

High-speed drive control and interlock protection in metallurgical rolling mills, blast furnace and converter control systems

Closed-loop process control and safety interlock for chemical reactors, pressure vessels and refining units in oil & gas and chemical industries

High-performance machinery protection and vibration monitoring, paired with vibration monitoring instruments

High-speed motion control and automation for industrial test benches and power quality test equipment

Shipboard power system control and marine generator set regulation

High-speed signal acquisition and actuator output for critical industrial safety and protection loops

ABB PPD513AOC-100440, Part No. 3BHE039724R0C3D

Module Type: High-speed mixed I/O module for the ABB AC800PEC ControlIT platform

Power Supply: 24 VDC ±10%, supplied through the rack backplane

Maximum Power Consumption: 25 W

Analog Inputs: 16 channels, configurable for 4–20 mA or 0–10 V signals

Digital Inputs: 32 channels with 24 VDC logic level

Analog Outputs: 8 configurable 4–20 mA channels

Digital Outputs: 16 relay contact output channels

Channel Isolation: Galvanic isolation separates field-side channels from internal logic circuits; selected output channels provide 2.5 kV AC isolation

Communication Interfaces: PROFIBUS DP; internal backplane bus for data exchange with AC800PEC CPU

Supported Programming Tools: Control Builder M and MATLAB/Simulink for rapid deployment of control algorithms

Control Performance: High-speed signal sampling and closed-loop control, designed for excitation, power electronics and turbine control applications

Diagnostics: Detection of channel open circuits and short circuits; power-on self-test; individual channel status LED indicators

System Compatibility: Compatible with AC800PEC controller series including PPD113 CPU modules

Protection Functions: Overcurrent protection, channel short-circuit protection, transient voltage suppression on field terminals

Function: Collects analog and digital field signals; sends control commands to field actuators; conditions signals for generator excitation and power equipment control
