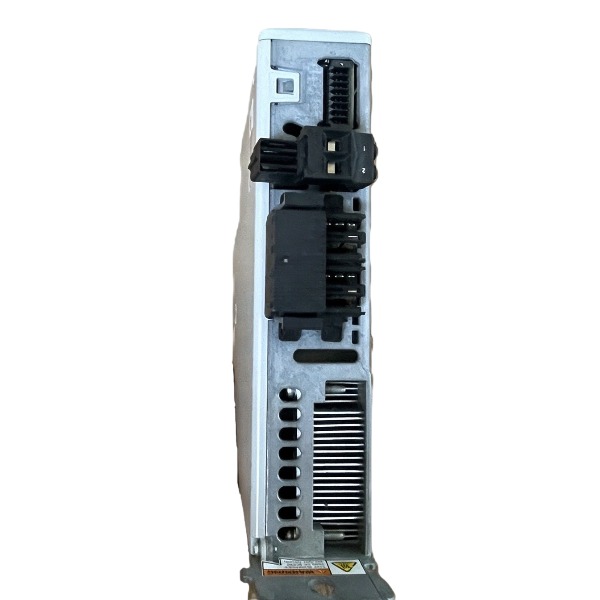

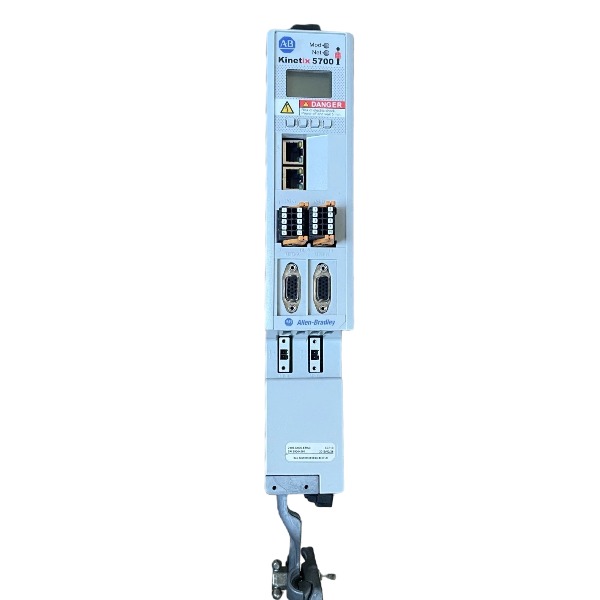

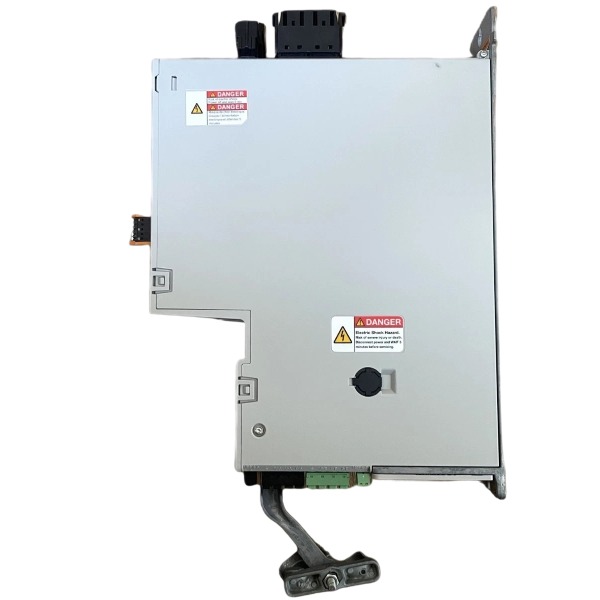

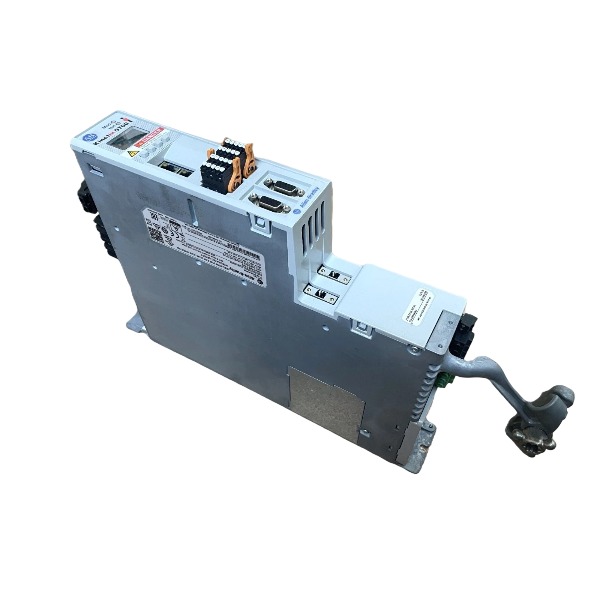

2198-D006-ERS3 Allen-Bradley DCS Module IN STOCK

• Brand
  Allen-Bradley
• Model
  2198-D006-ERS3
• Product Name
  Kinetix 5700 Dual Axis Inverter Module
• Place of Origin
  United States
• Customs HS Code
  85044099
• Power Supply
  370–720 V DC
• Dimensions
  252 mm height × 30 mm width × 433 mm depth
• Weight
  2.31 kg
• Operating Temperature
  0°C ~ +50°C
• Storage Temperature
  -40°C ~ +70°C
• Warranty
  12 month
• Product Status
  new brand

Advantages of Allen‑Bradley 2198-D006-ERS3 (Kinetix 5700 Dual Axis Inverter)

Compact dual-axis design. The 55 mm-wide module integrates two servo axes, saving cabinet space and cutting hardware count versus single-axis drives.

High power density. Optimized for multi-axis machinery. It supports shared DC bus connection with Kinetix 5700 bus supplies like the 2198-P141 to reduce cabling and recycle regenerative energy.

Built-in STO (Safe Torque Off). Certified PLd / SIL2 with hardwired safety circuits to satisfy machine safety requirements. The ERS3 variant features upgraded safety hardware.

Dual-port EtherNet/IP. Supports DLR and linear network topologies, delivers CIP Motion control with Logix controllers, and works within the unified Studio5000 programming environment.

Embedded Load Observer for real-time adaptive tuning. Automatically compensates mechanical resonance and inertia changes, shortening commissioning and minimizing manual tuning efforts.

Single-cable motor feedback. Combines motor power and position feedback inside one cable, reducing wiring labor and potential wiring-related failures.

Snap-on DC bus connector for simple installation. Enables fast inter-module bus connection and eases cabinet assembly and maintenance work.

Dual motor compatibility. Drives both servo motors and induction motors for flexible motion application deployment.

Rich onboard diagnostic functions. Monitors current, temperature, DC bus voltage and axis status, and provides readable fault codes for rapid fault localization.

CIP Security capability. Supports multi-layer network security protection for industrial control systems.

Wide ecosystem compatibility. Seamlessly interoperates with ControlLogix, CompactLogix and GuardLogix controllers for convenient system expansion and axis scaling.

Packaging machinery: cartoners, case packers, pouch fillers, tray handling and product sorting systems. Its compact dual-axis structure saves cabinet space for multi-axis packaging production lines.

Food and beverage equipment: bottle filling, capping, labeling and conveying machines. The integrated STO function satisfies safety specifications for food processing machinery.

Web handling and converting equipment: slitter rewinders, laminators, narrow-web printers, tissue and non-woven converting machines. It enables synchronized multi-axis tension control.

Automotive assembly equipment: compact assembly stations, material pick-and-place, fixture positioning and press feeding applications. It supports connection with GuardLogix safety controllers.

General assembly and material handling systems: gantry machines, miniature robotic transfer devices, auxiliary palletizing axes and synchronous conveyor lines.

Printing and paper processing machines: flexographic printers, die cutters and corrugated folder-gluer equipment. CIP Motion delivers high-precision electronic cam and axis synchronization.

Textile and hygiene product machinery: diaper and wet wipe production lines, providing reliable dual-axis synchronous motion control.

Custom OEM special machinery: multi-axis automatic test benches, processing equipment and positioning platforms. It can share the DC bus with Kinetix 5700 bus supply modules such as 2198-P141 to realize regenerative energy recycling.

Safety-critical machinery: equipment requiring PLd / SIL2 certified STO safety protection for operator hazard mitigation.

FAQ for Allen‑Bradley 2198-D006-ERS3 (Kinetix 5700 Dual Axis Inverter)

Q1: What is Allen-Bradley 2198-D006-ERS3?

A1: Allen-Bradley 2198-D006-ERS3 is a Rockwell Automation Kinetix 5700 dual-axis servo inverter. It connects to the Kinetix 5700 DC bus supply to drive two servo motors simultaneously for high-performance multi-axis motion control.

Q2: What are the main specifications of 2198-D006-ERS3?

A2: The 2198-D006-ERS3 dual axis module supports 3.3A continuous output current per axis, uses EtherNet/IP CIP motion communication, and includes integrated safe torque off (STO) safety function. It pairs with Kinetix 5700 DC bus supplies for compact cabinet layout.

Q3: What applications use Allen-Bradley 2198-D006-ERS3?

A3: This Kinetix 5700 servo inverter is commonly installed on packaging machines, automated assembly lines, material handling systems and CNC equipment. It is a popular spare part for servo system maintenance, upgrade and retrofitting projects.

Q4: Can I get tested Allen-Bradley 2198-D006-ERS3 spare parts from you?

A4: Yes, we provide original and surplus Allen-Bradley 2198-D006-ERS3 servo inverters for worldwide customers. Each unit passes pre-shipment functional testing. We offer 12-month warranty and fast international delivery for automation spare parts.
