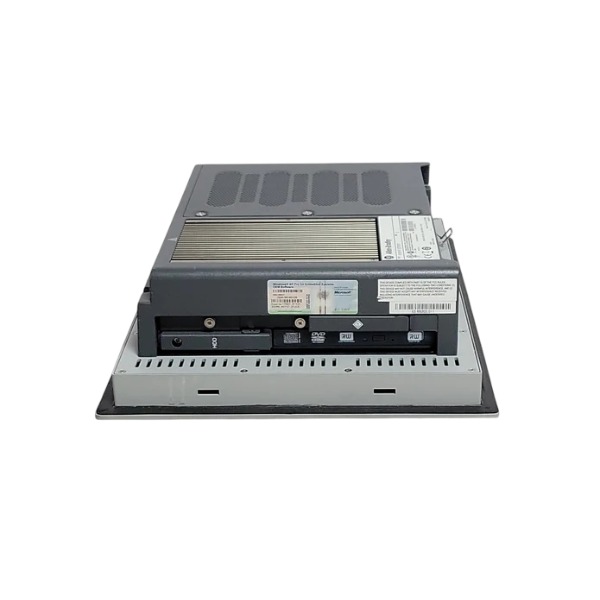

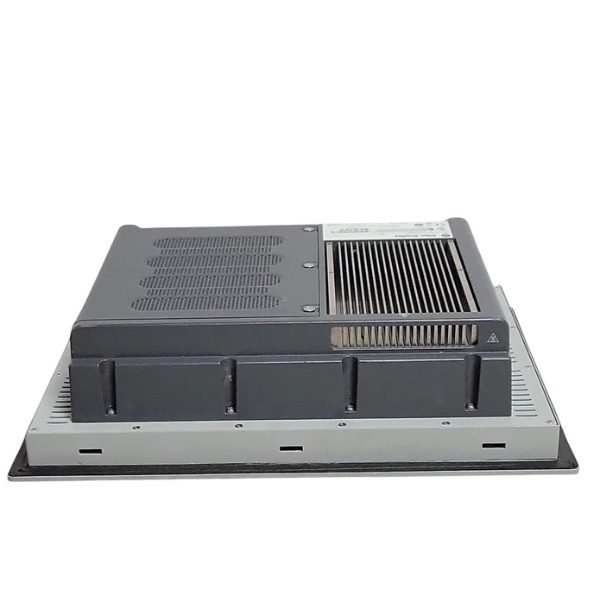

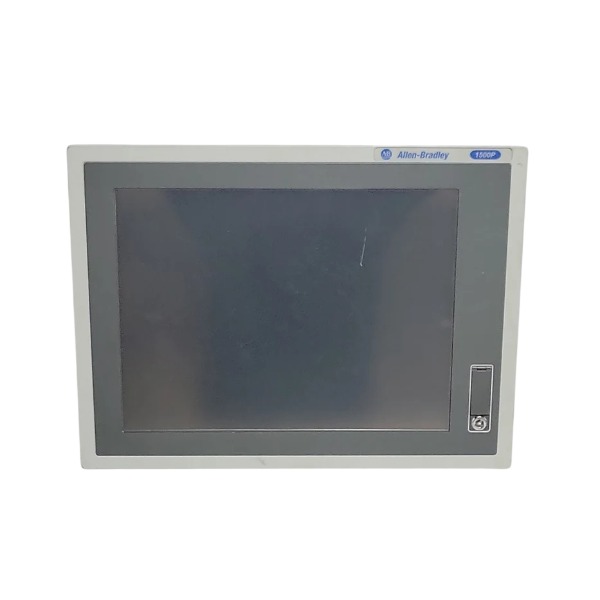

6181P-15TPXP Allen Bradley 15-inch Resistive Touch Integrated Industrial PC

• Brand
  Allen Bradley
• Model
  6181P-15TPXP
• Product Name
  VersaView 1500P 15-inch Resistive Touch Integrated Industrial PC
• Place of Origin
  United States
• Customs HS Code
  84714090
• Power Supply
  90 V AC to 264 V AC, 47 Hz to 63 Hz
• Dimensions
  390 mm × 310 mm × 95 mm
• Weight
  10.9 kg
• Operating Temperature
  0°C to +50°C
• Storage Temperature
  -20°C to +60°C
• Warranty
  1 year
• Product Status
  original

Main Features & Advantages of Allen‑Bradley 6181P‑15TPXP

Product type: VersaView 1500P all-in-one industrial panel PC, 15" TFT resistive touch screen, XGA resolution of 1024×768;

Operating system: Windows XP Professional Embedded;

Processor: Intel Core Duo 1.2 GHz;

Memory: 1 GB DDR2 RAM, expandable to a maximum of 4 GB;

Storage: 40 GB SATA HDD with dedicated recovery partition for quick system restore;

Power supply: 100–240 VAC universal input, 50/60 Hz;

Communication ports: 2×Gigabit Ethernet, 2×RS232 serial ports, 5×USB2.0;

Expansion: 1 half-length PCI slot, 2 CompactFlash Type II slots (one bootable, hot-swap capable);

Other interfaces: PS/2 keyboard and mouse port, parallel port, audio input/output, slim DVD-RW drive;

Front panel protection: IP65 rated front face, engineered for flush panel mounting;

Mechanical characteristics: Industrial shock and vibration resistance, built for non-stop 24/7 operation;

Core advantages:

Fully interoperable with Rockwell FactoryTalk software and Allen‑Bradley control systems to achieve smooth data exchange;

Abundant native interfaces plus PCI expansion slot enable flexible connection of external devices and customized function expansion;

Resistive touch screen supports gloved operation and maintains reliable performance in oily, dusty and humid factory environments;

Integrated display and host design cuts extra wiring work and optimizes cabinet layout;

Onboard recovery partition speeds up on-site system recovery after software faults;

Optional stainless steel bezel fulfills NEMA 4X standards for food, beverage and washdown scenarios;

Dual Ethernet ports support network redundancy as well as separated control and office network architecture;

Delivers reliable long-run performance for HMI, SCADA, data logging and equipment monitoring applications.

Similarities

Both are members of the VersaView 1500P all-in-one industrial panel PC family;

Feature a 15-inch XGA 1024×768 TFT resistive touchscreen;

IP65-rated front panel suitable for flush mounting;

Powered by Intel Core Duo 1.2 GHz processor;

Support DDR2 RAM expansion up to 4 GB;

Equipped with 2×Gigabit Ethernet, 2×RS232, 5×USB2.0, PS/2, parallel and audio ports;

Offer one half-length PCI expansion slot and two CompactFlash Type II slots;

Fully compatible with Rockwell FactoryTalk software and Allen‑Bradley control systems for HMI, SCADA and data collection;

Industrial shock and vibration resistance to support 24/7 continuous running;

Integrated recovery partition for fast system image restoration.

Differences

6181P-15TPXP: Standard unit with 100–240 VAC universal AC input; equipped with 40 GB SATA HDD and slim DVD-RW drive; supplied with standard aluminum bezel; preloaded with Windows XP Professional Embedded.

6181P-15TPPX: Washdown variant with stainless steel bezel, 100–240 VAC power input; built to satisfy NEMA 4X specifications; engineered for humid, washable and corrosive environments including food, beverage and pharmaceutical plants; optical drive eliminated for enhanced sealing capability; core internal circuitry and I/O pinout remain identical to the 6181P-15TPXP.

FAQ: 6181P-15TPXP Allen Bradley

Q1: What is 6181P-15TPXP Allen Bradley?

A1: 6181P-15TPXP is an Allen‑Bradley VersaView 6181P series 15-inch resistive touch industrial panel computer, integrated display HMI PC pre-installed with Windows XP system for factory floor SCADA and HMI operation.

Q2: What are the common applications of 6181P-15TPXP?

A2: It is widely used in manufacturing lines, packaging, water treatment, oil & gas, food & beverage and other automation sites for running FactoryTalk View, data monitoring and on-site operation control.

Q3: Is 6181P-15TPXP discontinued by Rockwell Allen Bradley?

A3: Yes, the 6181P series including 6181P-15TPXP is end-of-life (EOL) from the original manufacturer. We supply surplus, tested used and refurbished units.

Q4: What screen and touch type does 6181P-15TPXP have?

A4: It comes with a 15-inch TFT color display and analog resistive touch screen, supports stable operation with gloves in industrial environments.

Q5: What processor and operating system does 6181P-15TPXP use?

A5: It is equipped with Intel Core Duo U2500 1.2GHz CPU and original Windows XP operating system, designed for legacy Rockwell automation software.
